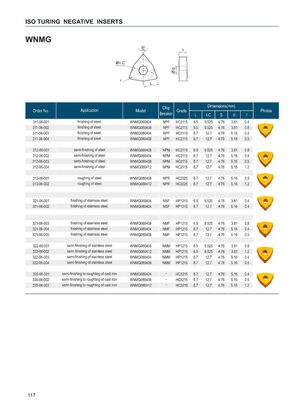

Общий каталог Harlingen 2024 - страница 118

ISO TURING NEGATIVE INSERTS WNMG s ~o Q Dimensions(mm) Order No. Application Model Chip Breaker 311-06- 001 311-06-002 311-06-003 311-06-004 finishing of steel, finishing of steel, finishing of steel finishing of steel. WNMG060404 WNMG060408 WNMG080404 WNMG080408 NPF NPF NPF NPF HC2115 HC2115 HC2115 HC2115 6.5 6.5 8.7 8.7 9.525 9.525 12.7 12.7 4.76 4.76 4.76 4.76 3.81 3.81 5.16 5.16 0.4 0.8 0.4 0.5 312-06-001 312-06-002 312-06-003 312-06-004 semi-finishing of steel semi-finishing of steel semi-finishing of steel semi-finishing of steel WNMG060408 WNMG080404 WNMG080408 WNMG080412 NPM NPM NPM NPM HC2115 HC2115 HC2115 HC2115 6.5 8.7 8.7 8.7 9.525 12.7 12.7 12.7 4.76 4.76 4.76 4.76 3.81 5.16 5.16 5.16 0.8 0.4 0.5 1.2 313-06-001 313-06-002 roughing of steel roughing of steel WNMG080408 WNMG080412 NPR NPR HC2025 HC2025 8.7 8.7 12.7 12.7 4.76 4.76 5.16 5.16 0.5 1.2 321-06- 001 321-06-002 finishing of stainless steel finishing of stainless steel. WNMG060404 WNMG080404 MSF MSF HP1215 HP1215 6.5 8.7 9.525 12.7 4.76 4.76 3.81 5.16 0.4 0.4 321-06-003 321-06-004 321-06- 005 finishing of stainless steel finishing of stainless steel finishing of stainless steel. WNMG060408 WNMG080404 WNMG080408 NMF NMF NMF HP1215 HP1215 HP1215 6.5 8.7 8.7 9.525 12.7 12.7 4.76 4.76 4.76 3.81 5.16 5.16 0.8 0.4 0.5 322-06-001 322-06-002 322-06- 003 322-06-004 semi-finishing of stainless steel semi-finishing of stainless steel semi-finishing of stainless steel semi-finishing of stainless steel WNMG060408 WNMG060412 WNMG080404 WNMG080408 NMM NMM NMM NMM HP1215 HP1215 HP1215 HP1215 6.5 6.5 8.7 8.7 9.525 9.525 12.7 12.7 4.76 4.76 4.76 4.76 3.81 3.81 5.16 5.16 0.8 1.2 0.4 0.5 335-06-001 335-06-002 335-06-003 semi-finishing to roughting of cast iron semi-finishing to roughting of cast iron semi-finishing to roughting of cast iron WNMG080404 WNMG080408 WNMG080412 HC3215 HC3215 HC3215 8.7 8.7 8.7 12.7 12.7 12.7 4.76 4.76 4.76 5.16 5.16 5.16 0.4 0.5 1.2 117 , , , , Photos 7 ^ W
