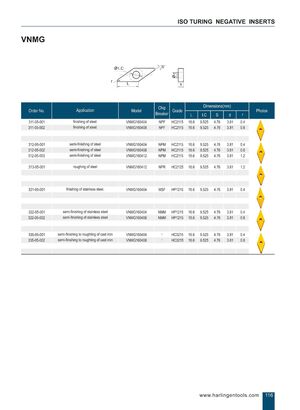

Общий каталог Harlingen 2024 - страница 117

ISO TURING NEGATIVE INSERTS VNMG X35° 01. C D ( \ r QI L s Dimensions(mm) Order No. Application Model Chip Breaker 311-05- 001 311-05-002 finishing of steel, finishing of steel. VNMG160404 VNMG160408 NPF NPF HC2115 HC2115 16.6 16.6 9.525 9.525 4.76 4.76 3.81 3.81 0.4 0.8 312-05-001 312-05-002 312-05-003 semi-finishing of steel semi-finishing of steel semi-finishing of steel VNMG160404 VNMG160408 VNMG160412 NPM NPM NPM HC2115 HC2115 HC2115 16.6 16.6 16.6 9.525 9.525 9.525 4.76 4.76 4.76 3.81 3.81 3.81 0.4 0.8 1.2 313-05-001 roughing of steel VNMG160412 NPR HC2125 16.6 9.525 4.76 3.81 1.2 321-05- 001 finishing of stainless steel. VNMG160404 MSF HP1215 16.6 9.525 4.76 3.81 0.4 322-05- 001 322-05-002 semi-finishing of stainless steel semi-finishing of stainless steel VNMG160404 VNMG160408 NMM NMM HP1215 HP1215 16.6 16.6 9.525 9.525 4.76 4.76 3.81 3.81 0.4 0.8 335-05-001 335-05-002 semi-finishing to roughting of cast iron semi-finishing to roughting of cast iron VNMG160404 VNMG160408 HC3215 HC3215 16.6 16.6 9.525 9.525 4.76 4.76 3.81 3.81 0.4 0.8 Photos www. harlingentools . com 116
