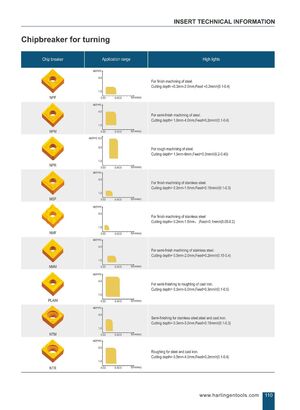

INSERT TECHNICAL INFORMATION Chipbreaker for turning Application range Chip breaker High lights ap( mm) 4.0 For finish machining of steel . Cutting depth =0.3mm-2.0mm , Feed =0.2mm/r(0.1-0.4) 1.0 0.03 0.40.5 f(mm/rev) ap( mm) 4.0 For semi-finish machining of steel. Cutting depth= 1.0mm-4.0mm , Feed=0.2mm/r(0.1-0.4) 1.0 0.03 0.40.5 f(mm/rev) ap(mm) 6.0 4.0 For rough machining of steel. Cutting depth= 1.5mm-6mm,Feed=0.3mm/r(0.2-0.45) 1.0 0.03 0.40.5 f(mm/rev) ap( mm) 4.0 For finish machining of stainless steel . Cutting depth= 0.2mm-1.5mm , Feed=0.15mm/r(0.1- 0.3) 1.0 0.03 0.40.5 f(mm/rev) ap( mm) 4.0 For finish machining of stainless steel. Cutting depth= 0.2mm-1.5mm v ,Feed=0.1mm/r(0.05-0.2) 1.0 0.03 0.40.5 f(mm/rev) ap( mm) 4.0 For semi-finish machining of stainless steel. Cutting depth= 0.5mm-2.0mm , Feed=0.2mm/r(0.15-0.4) 1.0 0.03 0.40.5 f(mm/rev) ap( mm) 4.0 For semi-finishing to roughting of cast iron. Cutting depth= 0.5mm-5.0mm , Feed=0.3mm/r(0.1-0.5) 1.0 PLAIN 0.03 0.40.5 f(mm/rev) ap( mm) 4.0 Semi-finishing for stainless steel , steel and cast iron. Cutting depth= 0.3mm-3.0mm , Feed=0.15mm/r(0.1- 0.3) 1.0 0.03 0.40.5 f(mm/rev) ap( mm) 4.0 Roughing for steel and cast iron. Cutting depth= 0.5mm-4.0mm , Feed=0.2mm/r(0.1-0.4) 1.0 0.03 0.40.5 f(mm/rev) www. harlingentools . com 110
