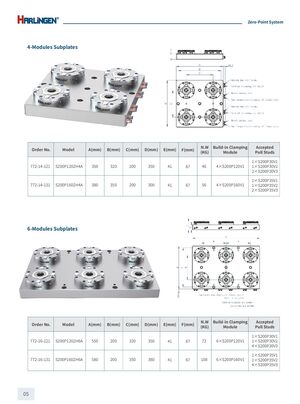

Zero-Point System 4-Modules Subplates Order No. Model A(mm) B(mm) C(mm) D(mm) E(mm) F(mm) N.W (KG) Build-in Clamping Module Accepted Pull Studs 772-14-121 S200P120ZH4A 350 320 200 350 41 67 46 4×S200P120V1 772-14-131 S200P160ZH4A 380 350 200 300 41 67 56 4×S200P160V1 1×S200P35V1 1×S200P35V2 2×S200P35V3 Accepted Pull Studs 1×S200P30V1 1×S200P30V2 2×S200P30V3 6-Modules Subplates 05 Order No. Model A(mm) B(mm) C(mm) D(mm) E(mm) F(mm) N.W (KG) Build-in Clamping Module 772-16-121 S200P120ZH6A 550 200 320 350 41 67 72 6×S200P120V1 772-16-131 S200P160ZH6A 580 200 350 380 41 67 108 6×S200P160V1 1×S200P30V1 1×S200P30V2 4×S200P30V3 1×S200P35V1 1×S200P35V2 4×S200P35V3
