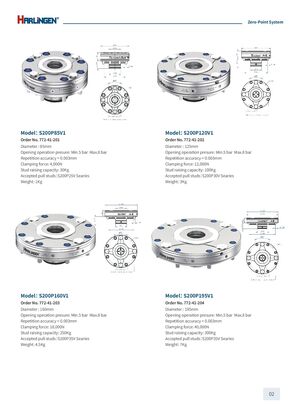

Zero-Point System Model：S200P85V1 Model：S200P120V1 Order No. 772-41-201 Order No. 772-41-202 Opening operation presure: Min.5 bar Max.8 bar Repetition accuracy < 0.003mm Clamping force: 4,000N Stud raising capacity: 30Kg Accepted pull studs：S200P25V Searies Weight: 1Kg Opening operation presure: Min.5 bar Max.8 bar Repetition accuracy < 0.003mm Clamping force: 12,000N Stud raising capacity: 100Kg Accepted pull studs：S200P30V Searies Weight: 3Kg Diameter : 85mm Model：S200P160V1 Order No. 772-41-203 Diameter : 160mm Opening operation presure: Min.5 bar Max.8 bar Repetition accuracy < 0.003mm Clamping force: 18,000N Stud raising capacity: 250Kg Accepted pull studs：S200P35V Searies Weight: 4.5Kg Diameter : 125mm Model：S200P195V1 Order No. 772-41-204 Diameter : 195mm Opening operation presure: Min.5 bar Max.8 bar Repetition accuracy < 0.003mm Clamping force: 40,000N Stud raising capacity: 300Kg Accepted pull studs：S200P35V Searies Weight: 7Kg 02
