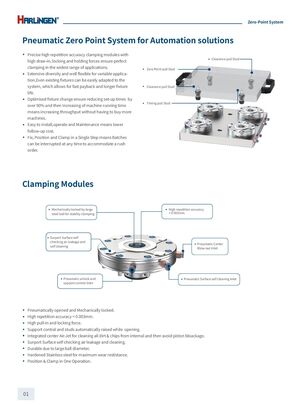

Zero-Point System Pneumatic Zero Point System for Automation solutions Precise high repetition accuracy clamping modules with high draw-in, locking and holding forces ensure perfect clamping in the widest range of applications. Extensive diversity and well flexible for variable application,Even existing fixtures can be easily adapted to the system, which allows for fast payback and longer fixture life. Optimised fixture change ensure reducing set-up times by over 90% and then Increasing of machine running time means increasing throughput without having to buy more Clearance pull Stud Zero Point pull Stud Clearance pull Stud Timing pull Stud machines. Easy to install,operate and Maintenance means lower follow-up cost. Fix, Position and Clamp in a Single Step means Batches can be interrupted at any time to accommodate a rush order. Clamping Modules Mechanically locked by large steel ball for stablity clamping Surport Surface self checking air leakage and self cleaning Pneumatic unlock and support control Inlet High repetition accuracy < 0.003mm Pneumatic Center Blow-out Inlet Pneumatic Surface self cleaning Inlet Pneumatically opened and Mechanically locked. High repetition accuracy < 0.003mm. High pull-in and locking force. Support contral and studs automatically raised while opening. Integrated center Air-Jet for cleaning all dirt & chips from internal and then avoid piston bloackage. Surport Surface self checking air leakage and cleaning. Durable due to large ball diameter. Hardened Stainless steel for maximum wear restistance. Position & Clamp in One Operation. 01
