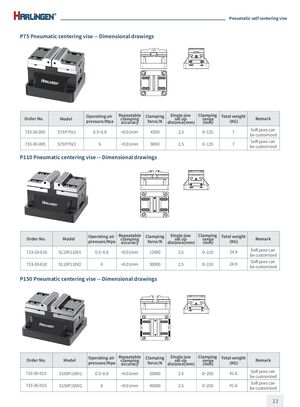

Pneumatic self centering vise P75 Pneumatic centering vise -- Dimensional drawings Order No. Model 733-20-005 S75P75V1 733-30-005 S75P75V2 Operating air pressure/Mpa Repeatable clamping accuracy 6 <0.01mm 0.5~0.8 <0.01mm Single jaw Clamping Clamping set up range force/N distance(mm) (mm) 4200 2.5 0~125 9000 2.5 0~125 Total weight (KG) 7 7 P110 Pneumatic centering vise -- Dimensional drawings Order No. Model 733-20-010 S110P110V1 733-30-010 S110P110V2 Operating air Repeatable clamping pressure/Mpa accuracy 0.5~0.8 <0.01mm 6 <0.01mm Single jaw Clamping Clamping set up range force/N distance(mm) (mm) 12000 2.5 0~210 30000 2.5 0~210 Total weight (KG) 24.9 24.9 P150 Pneumatic centering vise -- Dimensional drawings Order No. Model 733-20-015 S150P150V1 733-30-015 S150P150V2 Operating air Repeatable clamping pressure/Mpa accuracy 0.5~0.8 <0.01mm 6 <0.01mm Single jaw Clamping Clamping set up range force/N distance(mm) (mm) 20000 2.5 0~250 45000 2.5 0~250 Total weight (KG) 41.6 41.6 Remark Soft jaws can be customized Soft jaws can be customized Remark Soft jaws can be customized Soft jaws can be customized Remark Soft jaws can be customized Soft jaws can be customized 13
