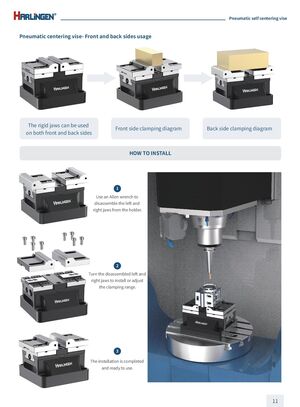

Pneumatic self centering vise Pneumatic centering vise- Front and back sides usage The rigid jaws can be used on both front and back sides Front side clamping diagram Back side clamping diagram HOW TO INSTALL 1 Use an Allen wrench to disassemble the left and right jaws from the holder. 2 Turn the disassembled left and right jaws to install or adjust the clamping range. 3 The installation is completed and ready to use. 11
