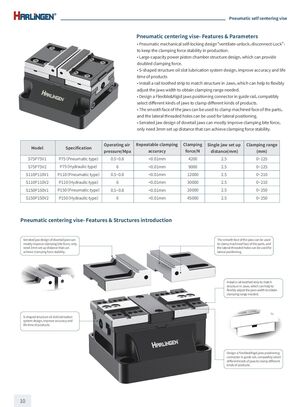

Pneumatic self centering vise Pneumatic centering vise- Features & Parameters • Pneumatic mechanical self-locking design“ventilate-unlock，disconnect-Lock”to keep the clamping force stability in production. • Large-capacity power piston chamber structure design，which can provide doubled clamping force. • S-shaped structure oil slot lubrication system design，improve accuracy and life time of products • Install a rail toothed strip to match structure in Jaws，which can help to flexibly adjust the jaws width to obtain clamping range needed. • Design a Flexible&Rigid jaws positioning connector in guide rail，compatibly select different kinds of jaws to clamp different kinds of products. • The smooth face of the jaws can be used to clamp machined face of the parts， and the lateral threaded holes can be used for lateral positioning. • Serrated jaw design of dovetail jaws can mostly improve clamping bite force， only need 3mm set up distance that can achieve clamping force stability. Model Specification Operating air Repeatable clamping Clamping Single jaw set up Clamping range 0.5~0.8 <0.01mm 4200 2.5 0~125 2.5 0~210 pressure/Mpa S75P75V1 P75（Pneumatic type） S110P110V1 P110（Pneumatic type） 0.5~0.8 S150P150V1 P150（Pneumatic type） 0.5~0.8 S75P75V2 S110P110V2 S150P150V2 P75（Hydraulic type） P110（Hydraulic type） P150（Hydraulic type） 6 6 6 accuracy <0.01mm force/N 9000 <0.01mm 12000 <0.01mm 20000 <0.01mm <0.01mm 30000 45000 distance(mm) 2.5 2.5 2.5 2.5 (mm) 0~125 0~210 0~250 0~250 Pneumatic centering vise- Features & Structures introduction Serrated jaw design of dovetail jaws can mostly improve clamping bite force, only need 3mm set up distance that can achieve clamping force stability. The smooth face of the jaws can be used to clamp machined face of the parts, and the lateral threaded holes can be used for lateral positioning. Install a rail toothed strip to match structure in Jaws，which can help to flexibly adjust the jaws width to obtain clamping range needed. S-shaped structure oil slot lubrication system design，improve accuracy and life time of products Design a Flexible&Rigid jaws positioning connector in guide rail，compatibly select different kinds of jaws to clamp different kinds of products. 10
