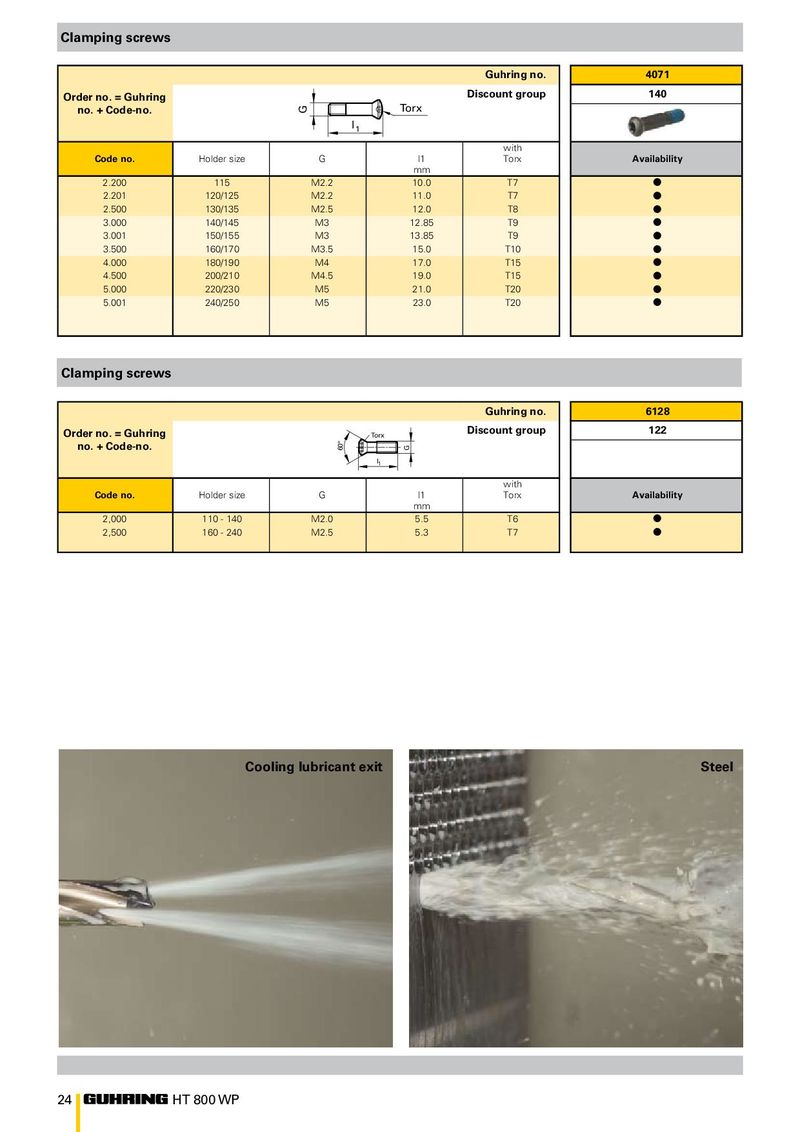

Clamping screws
| Guhring no. | 4071 | ||||
| Order no. = Guhring | Discount group | 140 | |||
| no. + Code-no. | G | Torx | |||
| l1 | |||||
| Code no. | Holder size | G | l1 mm | with Torx | Availability |
| 2.200 | 115 | M2.2 | 10.0 | T7 | l |
| 2.201 | 120/125 | M2.2 | 11.0 | T7 | l |
| 2.500 | 130/135 | M2.5 | 12.0 | T8 | l |
| 3.000 | 140/145 | M3 | 12.85 | T9 | l |
| 3.001 | 150/155 | M3 | 13.85 | T9 | l |
| 3.500 | 160/170 | M3.5 | 15.0 | T10 | l |
| 4.000 | 180/190 | M4 | 17.0 | T15 | l |
| 4.500 | 200/210 | M4.5 | 19.0 | T15 | l |
| 5.000 | 220/230 | M5 | 21.0 | T20 | l |
| 5.001 | 240/250 | M5 | 23.0 | T20 | l |
Clamping screws
| Guhring no. | 6128 | ||||
| Order no. = Guhring | o | Torx | Discount group | 122 | |
| no. + Code-no. | 60 | l1 G | |||
| Code no. | Holder size | G | l1 mm | with Torx | Availability |
| 2,000 | 110 - 140 | M2.0 | 5.5 | T6 | l |
| 2,500 | 160 - 240 | M2.5 | 5.3 | T7 | l |
