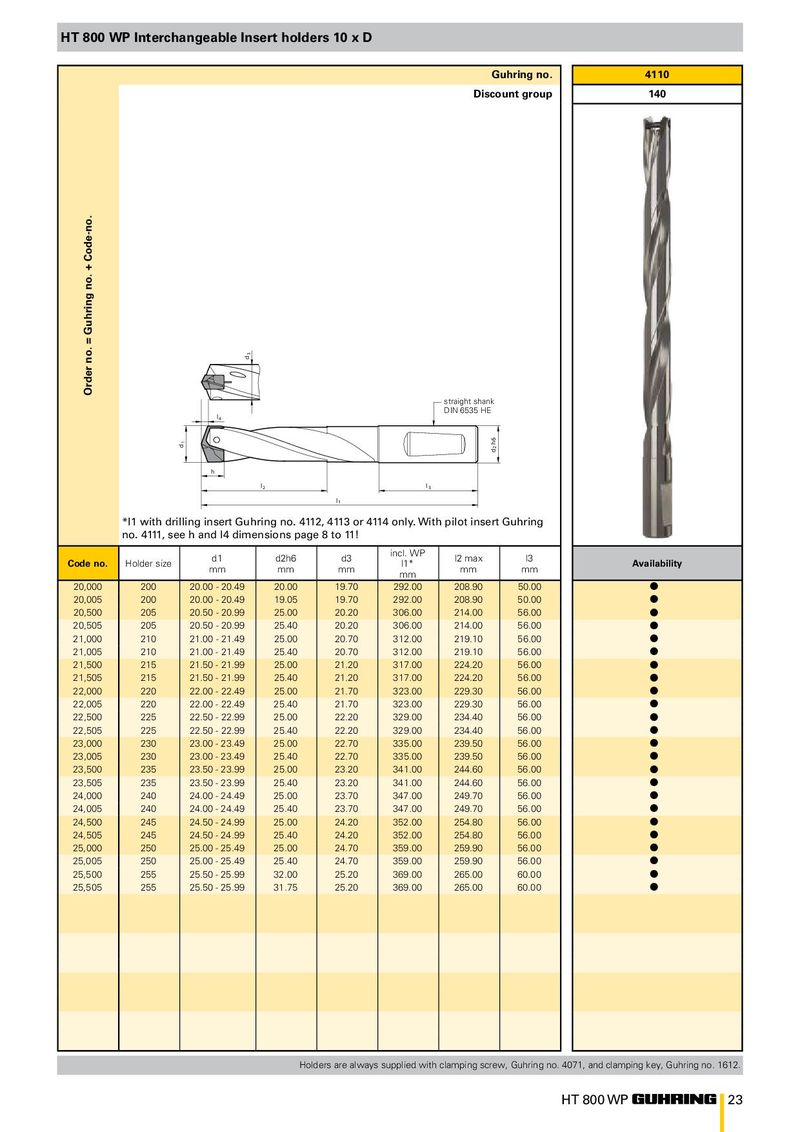

| Order no. = Guhring no. + Code-no. | d3 l4 | Zylinderschaft DIN 6535-HE Gu Discou straight shank DIN 6535 HE | hring no. nt group | 4110 140 | ||||
| d1 | d2h6 | |||||||
| l1 with dri no. 4111, se | h lling insert Guhr e h and l4 dime | l2 ing no. 411 nsions page | l1 2, 4113 or 41 8 to 11! | l3 14 only. With | pilot insert G | uhring | ||
| Code no. | Holder size | d1 mm | d2h6 mm | d3 mm | incl. WP l1 mm | l2 max mm | l3 mm | Availability |
| 20,000 | 200 | 20.00 - 20.49 | 20.00 | 19.70 | 292.00 | 208.90 | 50.00 | l |
| 20,005 | 200 | 20.00 - 20.49 | 19.05 | 19.70 | 292.00 | 208.90 | 50.00 | l |
| 20,500 | 205 | 20.50 - 20.99 | 25.00 | 20.20 | 306.00 | 214.00 | 56.00 | l |
| 20,505 | 205 | 20.50 - 20.99 | 25.40 | 20.20 | 306.00 | 214.00 | 56.00 | l |
| 21,000 | 210 | 21.00 - 21.49 | 25.00 | 20.70 | 312.00 | 219.10 | 56.00 | l |
| 21,005 | 210 | 21.00 - 21.49 | 25.40 | 20.70 | 312.00 | 219.10 | 56.00 | l |
| 21,500 | 215 | 21.50 - 21.99 | 25.00 | 21.20 | 317.00 | 224.20 | 56.00 | l |
| 21,505 | 215 | 21.50 - 21.99 | 25.40 | 21.20 | 317.00 | 224.20 | 56.00 | l |
| 22000 | 220 | 22.00 - 22.49 | 25.00 | 21.70 | 323.00 | 229.30 | 56.00 | l |
| , 22,005 | 220 | 22.00 - 22.49 | 25.40 | 21.70 | 323.00 | 229.30 | 56.00 | l |
| 22,500 | 225 | 22.50 - 22.99 | 25.00 | 22.20 | 329.00 | 234.40 | 56.00 | l |
| 22,505 | 225 | 22.50 - 22.99 | 25.40 | 22.20 | 329.00 | 234.40 | 56.00 | l |
| 23,000 | 230 | 23.00 - 23.49 | 25.00 | 22.70 | 335.00 | 239.50 | 56.00 | l |
| 23,005 23,500 | 230 235 | 23.00 - 23.49 23.50 - 23.99 | 25.40 25.00 | 22.70 23.20 | 335.00 341.00 | 239.50 244.60 | 56.00 56.00 | l l |
| 23505 | 235 | 23.50 - 23.99 | 25.40 | 23.20 | 341.00 | 244.60 | 56.00 | l |
| , 24,000 | 240 | 24.00 - 24.49 | 25.00 | 23.70 | 347.00 | 249.70 | 56.00 | l |
| 24,005 | 240 | 24.00 - 24.49 | 25.40 | 23.70 | 347.00 | 249.70 | 56.00 | l |
| 24,500 | 245 | 24.50 - 24.99 | 25.00 | 24.20 | 352.00 | 254.80 | 56.00 | l |
| 24,505 | 245 | 24.50 - 24.99 | 25.40 | 24.20 | 352.00 | 254.80 | 56.00 | l |
| 25,000 | 250 | 25.00 - 25.49 | 25.00 | 24.70 | 359.00 | 259.90 | 56.00 | l |
| 25,005 | 250 | 25.00 - 25.49 | 25.40 | 24.70 | 359.00 | 259.90 | 56.00 | l |
| 25,500 | 255 | 25.50 - 25.99 | 32.00 | 25.20 | 369.00 | 265.00 | 60.00 | l |
| 25,505 | 255 | 25.50 - 25.99 | 31.75 | 25.20 | 369.00 | 265.00 | 60.00 | l |
