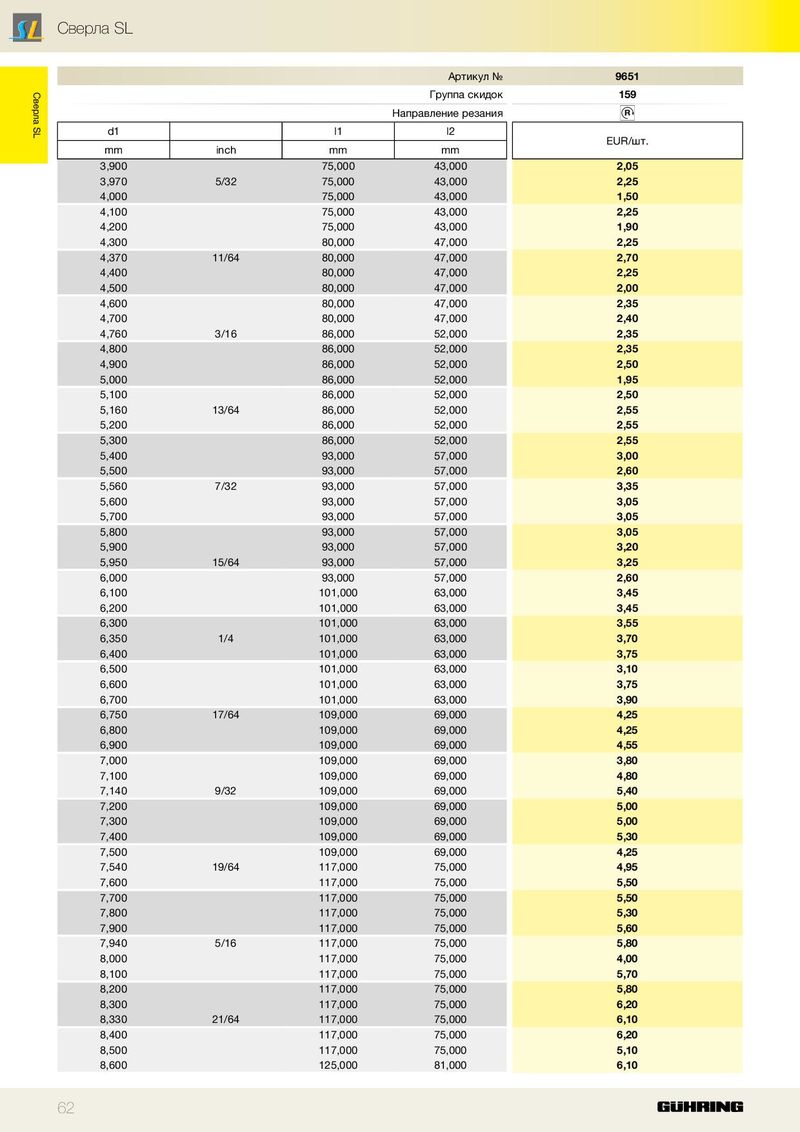

| Артикул № Группа скидок | 9651 159 | |||
| Направление резания | R | |||
| d1 | l1 | l2 | EUR/шт | |
| mm | inch | mm | mm | . |
| 3,900 | 75,000 | 43,000 | 2,05 | |
| 3,970 | 5/32 | 75,000 | 43,000 | 2,25 |
| 4,000 | 75,000 | 43,000 | 1,50 | |
| 4,100 4,200 | 75,000 75,000 | 43,000 43,000 | 2,25 1,90 | |
| 4,300 | 80,000 | 47,000 | 2,25 | |
| 4,370 | 11/64 | 80,000 | 47,000 | 2,70 |
| 4,400 | 80,000 | 47,000 | 2,25 | |
| 4,500 | 80,000 | 47,000 | 2,00 | |
| 4,600 | 80,000 | 47,000 | 2,35 | |
| 4,700 | 80,000 | 47,000 | 2,40 | |
| 4,760 | 3/16 | 86,000 | 52,000 | 2,35 |
| 4,800 | 86,000 | 52,000 | 2,35 | |
| 4,900 | 86,000 | 52,000 | 2,50 | |
| 5,000 | 86,000 | 52,000 | 1,95 | |
| 5,100 | 86,000 | 52,000 | 2,50 | |
| 5,160 | 13/64 | 86,000 | 52,000 | 2,55 |
| 5,200 | 86,000 | 52,000 | 2,55 | |
| 5,300 | 86,000 | 52,000 | 2,55 | |
| 5,400 | 93,000 | 57,000 | 3,00 | |
| 5,500 | 93,000 | 57,000 | 2,60 | |
| 5,560 | 7/32 | 93,000 | 57,000 | 3,35 |
| 5,600 | 93,000 | 57,000 | 3,05 | |
| 5,700 | 93,000 | 57,000 | 3,05 | |
| 5,800 | 93,000 | 57,000 | 3,05 | |
| 5,900 | 93,000 | 57,000 | 3,20 | |
| 5,950 | 15/64 | 93,000 | 57,000 | 3,25 |
| 6,000 | 93,000 | 57,000 | 2,60 | |
| 6100 | 101000 | 63000 | 345 | |
| , 6,200 | , 101,000 | , 63,000 | , 3,45 | |
| 6,300 | 101,000 | 63,000 | 3,55 | |
| 6,350 | 1/4 | 101,000 | 63,000 | 3,70 |
| 6,400 | 101,000 | 63,000 | 3,75 | |
| 6,500 | 101,000 | 63,000 | 3,10 | |
| 6,600 | 101,000 | 63,000 | 3,75 | |
| 6,700 | 101,000 | 63,000 | 3,90 | |
| 6,750 | 17/64 | 109,000 | 69,000 | 4,25 |
| 6,800 | 109,000 | 69,000 | 4,25 | |
| 6,900 | 109,000 | 69,000 | 4,55 | |
| 7,000 | 109,000 | 69,000 | 3,80 | |
| 7,100 | 109,000 | 69,000 | 4,80 | |
| 7,140 | 9/32 | 109,000 | 69,000 | 5,40 |
| 7,200 | 109,000 | 69,000 | 5,00 | |
| 7,300 | 109,000 | 69,000 | 5,00 | |
| 7,400 | 109,000 | 69,000 | 5,30 | |
| 7,500 | 109,000 | 69,000 | 4,25 | |
| 7,540 7,600 | 19/64 | 117,000 117,000 | 75,000 75,000 | 4,95 5,50 |
| 7,700 | 117,000 | 75,000 | 5,50 | |
| 7,800 | 117,000 | 75,000 | 5,30 | |
| 7,900 | 117,000 | 75,000 | 5,60 | |
| 7,940 | 5/16 | 117,000 | 75,000 | 5,80 |
| 8000 | 117000 | 75000 | 400 | |
| , 8,100 | , 117,000 | , 75,000 | , 5,70 | |
| 8,200 | 117,000 | 75,000 | 5,80 | |
| 8,300 | 117,000 | 75,000 | 6,20 | |
| 8,330 | 21/64 | 117,000 | 75,000 | 6,10 |
| 8,400 | 117,000 | 75,000 | 6,20 | |
| 8,500 8,600 | 117,000 125,000 | 75,000 81,000 | 5,10 6,10 |
