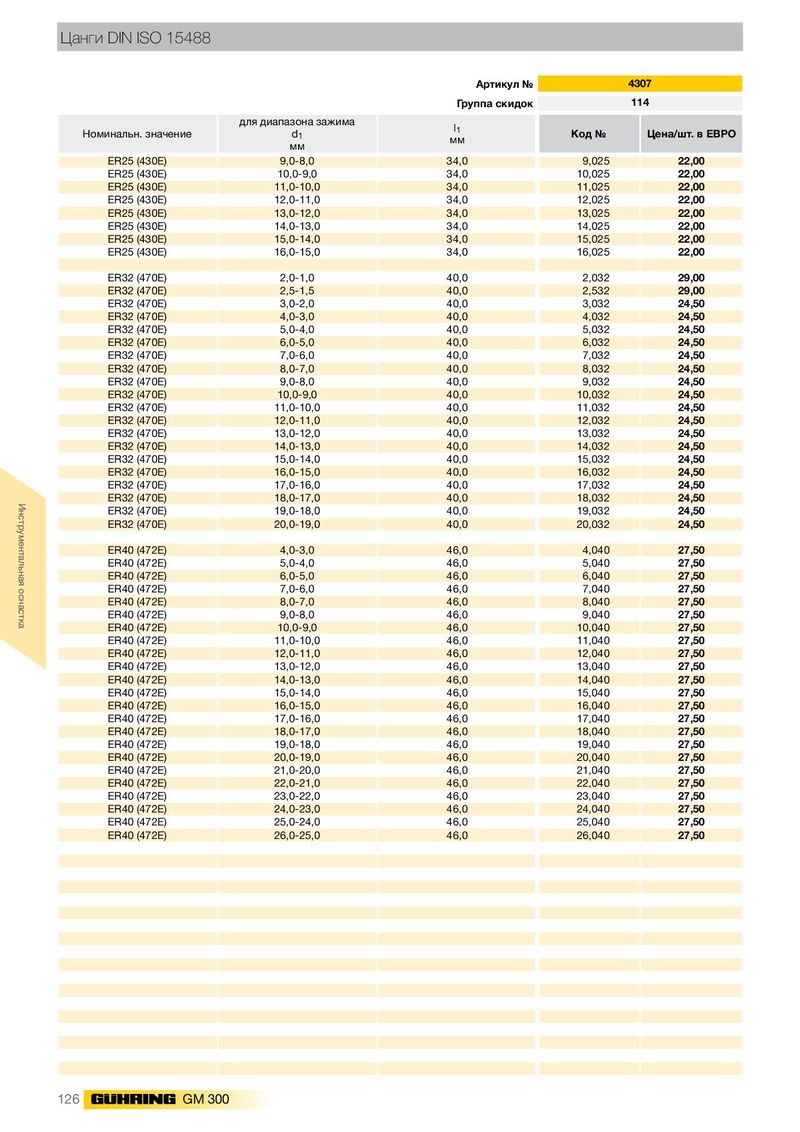

Цанги DIN ISO 15488
| Артикул № | 4307 | |||
| Группа скидок | 114 | |||
| для диапазона зажима | l | |||
| Номинальн. значение | d1 мм | 1 мм | Код № | Цена/шт. в ЕВРО |
| ER25 (430E) | 9,0-8,0 | 34,0 | 9,025 | 22,00 |
| ER25 (430E) | 10,0-9,0 | 34,0 | 10,025 | 22,00 |
| ER25 (430E) | 11,0-10,0 | 34,0 | 11,025 | 22,00 |
| ER25 (430E) | 12,0-11,0 | 34,0 | 12,025 | 22,00 |
| ER25 (430E) | 13,0-12,0 | 34,0 | 13,025 | 22,00 |
| ER25 (430E) | 14,0-13,0 | 34,0 | 14,025 | 22,00 |
| ER25 (430E) | 15,0-14,0 | 34,0 | 15,025 | 22,00 |
| ER25 (430E) | 16,0-15,0 | 34,0 | 16,025 | 22,00 |
| ER32 (470E) | 2,0-1,0 | 40,0 | 2,032 | 29,00 |
| ER32 (470E) | 2,5-1,5 | 40,0 | 2,532 | 29,00 |
| ER32 (470E) | 3,0-2,0 | 40,0 | 3,032 | 24,50 |
| ER32 (470E) | 4,0-3,0 | 40,0 | 4,032 | 24,50 |
| ER32 (470E) | 5,0-4,0 | 40,0 | 5,032 | 24,50 |
| ER32 (470E) | 6,0-5,0 | 40,0 | 6,032 | 24,50 |
| ER32 (470E) | 7,0-6,0 | 40,0 | 7,032 | 24,50 |
| ER32 (470E) | 8,0-7,0 | 40,0 | 8,032 | 24,50 |
| ER32 (470E) | 9,0-8,0 | 40,0 | 9,032 | 24,50 |
| ER32 (470E) | 10,0-9,0 | 40,0 | 10,032 | 24,50 |
| ER32 (470E) | 11,0-10,0 | 40,0 | 11,032 | 24,50 |
| ER32 (470E) | 12,0-11,0 | 40,0 | 12,032 | 24,50 |
| ER32 (470E) | 13,0-12,0 | 40,0 | 13,032 | 24,50 |
| ER32 (470E) | 14,0-13,0 | 40,0 | 14,032 | 24,50 |
| ER32 (470E) | 15,0-14,0 | 40,0 | 15,032 | 24,50 |
| ER32 (470E) | 16,0-15,0 | 40,0 | 16,032 | 24,50 |
| ER32 (470E) | 17,0-16,0 | 40,0 | 17,032 | 24,50 |
| ER32 (470E) | 18,0-17,0 | 40,0 | 18,032 | 24,50 |
| ER32 (470E) | 19,0-18,0 | 40,0 | 19,032 | 24,50 |
| ER32 (470E) | 20,0-19,0 | 40,0 | 20,032 | 24,50 |
| ER40 (472E) | 4,0-3,0 | 46,0 | 4,040 | 27,50 |
| ER40 (472E) | 5,0-4,0 | 46,0 | 5,040 | 27,50 |
| ER40 (472E) | 6,0-5,0 | 46,0 | 6,040 | 27,50 |
| ER40 (472E) | 7,0-6,0 | 46,0 | 7,040 | 27,50 |
| ER40 (472E) | 8,0-7,0 | 46,0 | 8,040 | 27,50 |
| ER40 (472E) | 9,0-8,0 | 46,0 | 9,040 | 27,50 |
| ER40 (472E) | 10,0-9,0 | 46,0 | 10,040 | 27,50 |
| ER40 (472E) | 11,0-10,0 | 46,0 | 11,040 | 27,50 |
| ER40 (472E) ER40 (472E) | 12,0-11,0 13,0-12,0 | 46,0 46,0 | 12,040 13,040 | 27,50 27,50 |
| ER40 (472E) | 14,0-13,0 | 46,0 | 14,040 | 27,50 |
| ER40 (472E) | 15,0-14,0 | 46,0 | 15,040 | 27,50 |
| ER40 (472E) | 16,0-15,0 | 46,0 | 16,040 | 27,50 |
| ER40 (472E) | 17,0-16,0 | 46,0 | 17,040 | 27,50 |
| ER40 (472E) | 18,0-17,0 | 46,0 | 18,040 | 27,50 |
| ER40 (472E) | 19,0-18,0 | 46,0 | 19,040 | 27,50 |
| ER40 (472E) | 20,0-19,0 | 46,0 | 20,040 | 27,50 |
| ER40 (472E) | 21,0-20,0 | 46,0 | 21,040 | 27,50 |
| ER40 (472E) | 22,0-21,0 | 46,0 | 22,040 | 27,50 |
| ER40 (472E) | 23,0-22,0 | 46,0 | 23,040 | 27,50 |
| ER40 (472E) | 24,0-23,0 | 46,0 | 24,040 | 27,50 |
| ER40 (472E) | 25,0-24,0 | 46,0 | 25,040 | 27,50 |
| ER40 (472E) | 26,0-25,0 | 46,0 | 26,040 | 27,50 |
