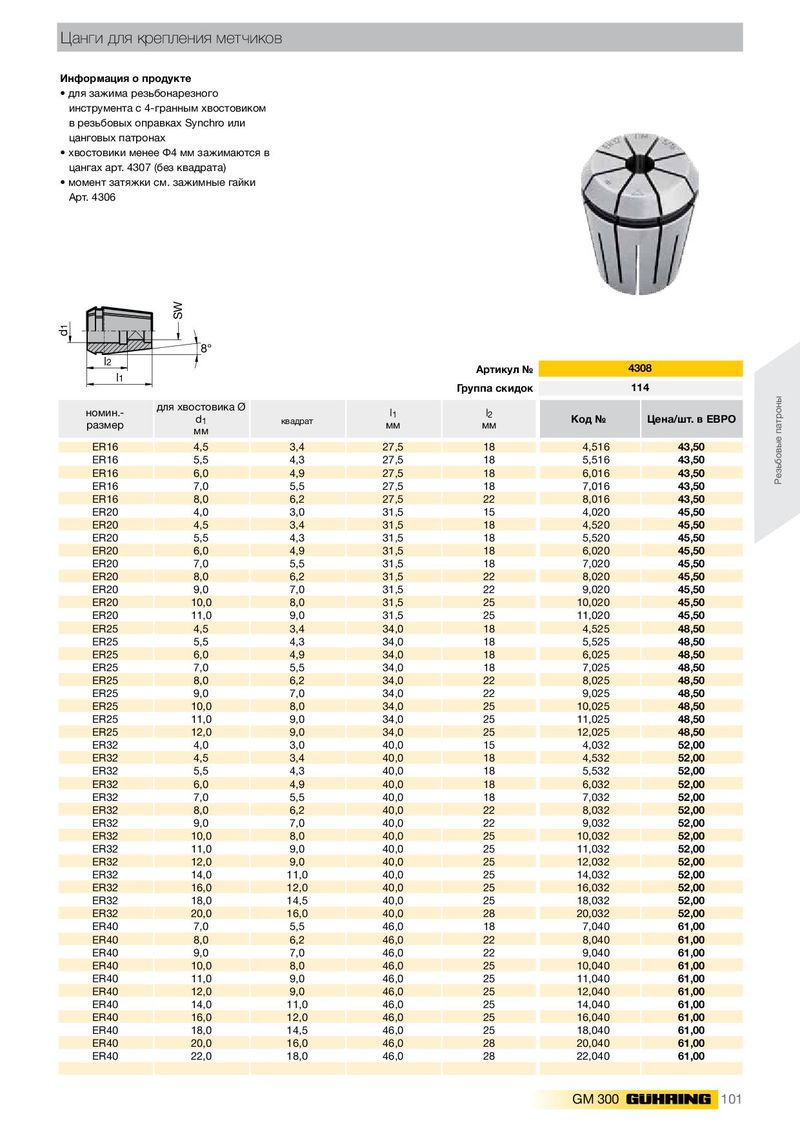

Цанги для крепления метчиков
- для зажима резьбонарезного инструмента с 4-гранным хвостовиком в резьбовых оправках Synchro или цанговых патронах
- хвостовики менее Ф4 мм зажимаются в цангах арт. 4307 (без квадрата)
- момент затяжки см. зажимные гайки Арт. 4306
| SW | ||||||
| d1 | 8° | |||||
| l1 l2 | Артикул № | 4308 | ||||
| Группа скидок | 114 | |||||
| д | ля хвостовика Ø | |||||
| номин.- | d1 | кваат | l1 | l2 | Код № | Цена/шт. в ЕВРО |
| размер | мм | др | мм | мм | ||
| ER16 | 4,5 | 3,4 | 27,5 | 18 | 4,516 | 43,50 |
| ER16 | 5,5 | 4,3 | 27,5 | 18 | 5,516 | 43,50 |
| ER16 | 6,0 | 4,9 | 27,5 | 18 | 6,016 | 43,50 |
| ER16 | 7,0 | 5,5 | 27,5 | 18 | 7,016 | 43,50 |
| ER16 | 8,0 | 6,2 | 27,5 | 22 | 8,016 | 43,50 |
| ER20 | 4,0 | 3,0 | 31,5 | 15 | 4,020 | 45,50 |
| ER20 | 4,5 | 3,4 | 31,5 | 18 | 4,520 | 45,50 |
| ER20 | 5,5 | 4,3 | 31,5 | 18 | 5,520 | 45,50 |
| ER20 | 6,0 | 4,9 | 31,5 | 18 | 6,020 | 45,50 |
| ER20 | 7,0 | 5,5 | 31,5 | 18 | 7,020 | 45,50 |
| ER20 | 8,0 | 6,2 | 31,5 | 22 | 8,020 | 45,50 |
| ER20 | 9,0 | 7,0 | 31,5 | 22 | 9,020 | 45,50 |
| ER20 | 10,0 | 8,0 | 31,5 | 25 | 10,020 | 45,50 |
| ER20 | 11,0 | 9,0 | 31,5 | 25 | 11,020 | 45,50 |
| ER25 | 4,5 | 3,4 | 34,0 | 18 | 4,525 | 48,50 |
| ER25 | 5,5 | 4,3 | 34,0 | 18 | 5,525 | 48,50 |
| ER25 | 6,0 | 4,9 | 34,0 | 18 | 6,025 | 48,50 |
| ER25 | 7,0 | 5,5 | 34,0 | 18 | 7,025 | 48,50 |
| ER25 | 8,0 | 6,2 | 34,0 | 22 | 8,025 | 48,50 |
| ER25 | 9,0 | 7,0 | 34,0 | 22 | 9,025 | 48,50 |
| ER25 | 10,0 | 8,0 | 34,0 | 25 | 10,025 | 48,50 |
| ER25 | 11,0 | 9,0 | 34,0 | 25 | 11,025 | 48,50 |
| ER25 | 12,0 | 9,0 | 34,0 | 25 | 12,025 | 48,50 |
| ER32 | 4,0 | 3,0 | 40,0 | 15 | 4,032 | 52,00 |
| ER32 | 4,5 | 3,4 | 40,0 | 18 | 4,532 | 52,00 |
| ER32 | 5,5 | 4,3 | 40,0 | 18 | 5,532 | 52,00 |
| ER32 | 6,0 | 4,9 | 40,0 | 18 | 6,032 | 52,00 |
| ER32 | 7,0 | 5,5 | 40,0 | 18 | 7,032 | 52,00 |
| ER32 | 8,0 | 6,2 | 40,0 | 22 | 8,032 | 52,00 |
| ER32 | 9,0 | 7,0 | 40,0 | 22 | 9,032 | 52,00 |
| ER32 | 10,0 | 8,0 | 40,0 | 25 | 10,032 | 52,00 |
| ER32 | 11,0 | 9,0 | 40,0 | 25 | 11,032 | 52,00 |
| ER32 | 12,0 | 9,0 | 40,0 | 25 | 12,032 | 52,00 |
| ER32 | 14,0 | 11,0 | 40,0 | 25 | 14,032 | 52,00 |
| ER32 | 16,0 | 12,0 | 40,0 | 25 | 16,032 | 52,00 |
| ER32 | 18,0 | 14,5 | 40,0 | 25 | 18,032 | 52,00 |
| ER32 | 20,0 | 16,0 | 40,0 | 28 | 20,032 | 52,00 |
| ER40 | 7,0 | 5,5 | 46,0 | 18 | 7,040 | 61,00 |
| ER40 | 8,0 | 6,2 | 46,0 | 22 | 8,040 | 61,00 |
| ER40 | 9,0 | 7,0 | 46,0 | 22 | 9,040 | 61,00 |
| ER40 | 100 | 80 | 460 | 25 | 10040 | 6100 |
| ER40 | , 11,0 | , 9,0 | , 46,0 | 25 | , 11,040 | , 61,00 |
| ER40 | 12,0 | 9,0 | 46,0 | 25 | 12,040 | 61,00 |
| ER40 | 14,0 | 11,0 | 46,0 | 25 | 14,040 | 61,00 |
| ER40 | 16,0 | 12,0 | 46,0 | 25 | 16,040 | 61,00 |
| ER40 | 18,0 | 14,5 | 46,0 | 25 | 18,040 | 61,00 |
| ER40 | 20,0 | 16,0 | 46,0 | 28 | 20,040 | 61,00 |
| ER40 | 22,0 | 18,0 | 46,0 | 28 | 22,040 | 61,00 |
