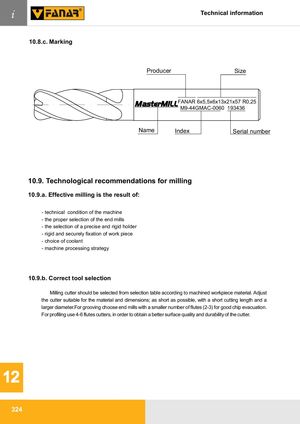

i Technical information 10.8.c. Marking Producer Size MasterMILLFANAR 6x5,5x6x13x21x57 R0,25 M9-44GMAC-0060 193436 Name Index Serial number 10.9. Technological recommendations for milling 10.9.a. Effective milling is the result of: - technical condition of the machine - the proper selection of the end mills - the selection of a precise and rigid holder - rigid and securely fixation of work piece - choice of coolant - machine processing strategy 10.9.b. Correct tool selection Milling cutter should be selected from selection table according to machined workpiece material. Adjust the cutter suitable for the material and dimensions; as short as possible, with a short cutting length and a larger diameter.For grooving choose end mills with a smaller number of flutes (2-3) for good chip evacuation. For profiling use 4-6 flutes cutters, in order to obtain a better surface quality and durability of the cutter. 12 324
