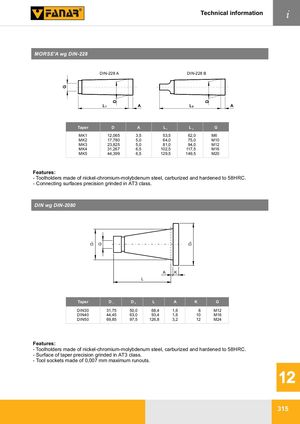

G D1 G D D2 D Technical information i MORSE'A wg DIN-228 DIN-228 A DIN-228 B L1 A L2 A Taper D A L1 L2 G MK1 12,065 3,5 53,5 62,0 M6 MK2 17,780 5,0 64,0 75,0 M10 MK3 23,825 5,0 81,0 94,0 M12 MK4 31,267 6,5 102,5 117,5 M16 MK5 44,399 6,5 129,5 149,5 M20 Features: - Toolholders made of nickel-chromium-molybdenum steel, carburized and hardened to 58HRC. - Connecting surfaces precision grinded in AT3 class. DIN wg DIN-2080 A K L Taper D1 D2 L A K G DIN30 31,75 50,0 68,4 1,6 8 M12 DIN40 44,45 63,0 93,4 1,6 10 M16 DIN50 69,85 97,5 126,8 3,2 12 M24 Features: - Toolholders made of nickel-chromium-molybdenum steel, carburized and hardened to 58HRC. - Surface of taper precision grinded in AT3 class. - Tool sockets made of 0,007 mm maximum runouts. 12 315
