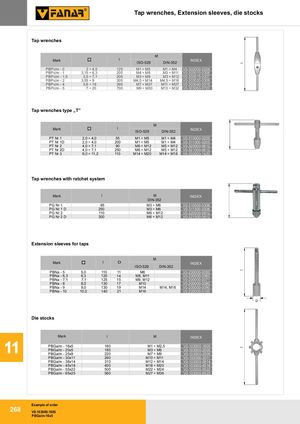

lll Tap wrenches, Extension sleeves, die stocks Tap wrenches M Mark l INDEX ISO-529 DIN-352 PBPc/m - 0 2 ÷ 4,5 125 M1 ÷ M5 M1 ÷ M4 V0-303000-0204 PBPc/m - 1 3,15 ÷ 6,3 205 M4 ÷ M8 M3 ÷ M11 V0-303010-0306 PBPc/m - 1,5 2,5 ÷ 7,1 205 M3 ÷ M9 M3 ÷ M12 V0-303015-0207 PBPc/m - 2 3,55 ÷ 9 305 M4,5 ÷ M14 M4,5 ÷ M16 V0-303020-0309 PBPc/m - 4 5,6 ÷ 16 395 M7 ÷ M27 M11 ÷ M27 V0-303040-0516 PBPc/m - 5 7 ÷ 20 700 M9 ÷ M30 M13 ÷ M32 V0-303050-0720 Tap wrenches type „T” M Mark l INDEX ISO-529 DIN-352 PT Nr 1 2,0 ÷ 4,0 55 M1 ÷ M5 M1 ÷ M4 V0-310000-0205 PT Nr 1D 2,0 ÷ 4,0 200 M1 ÷ M5 M1 ÷ M4 V0-311000-0205 PT Nr 2 4,0 ÷ 7,1 90 M6 ÷ M12 M5 ÷ M12 V0-320000-0612 PT Nr 2D 4,0 ÷ 7,1 250 M6 ÷ M12 M5 ÷ M12 V0-321000-0612 PT Nr 3 9,0 ÷ 11,2 110 M14 ÷ M20 M14 ÷ M18 V0-330000-1420 Tap wrenches with ratchet system Mark l M INDEX DIN-352 PG Nr 1 85 M3 ÷ M6 V0-310500-0306 PG Nr 1 D 250 M3 ÷ M6 V0-311500-0306 PG Nr 2 110 M6 ÷ M12 V0-320500-0612 PG Nr 2 D 300 M6 ÷ M12 V0-321500-0612 Extension sleeves for taps Mark M MSaigrnkBezeichnung l Dl IISSOO--552299 DIN-352 INDEX PBNa - 5 5,0 110 11110 M6 V0-200000-0050 PBNa - 6,3 6,3 120 11420 M8, M11 V0-200000-0063 PBNa - 7,1 7,1 125 11525 M9, M12 V0-200000-0071 PBNa - 8 8,0 130 11730 M10 V0-200000-0080 PBNa - 9 9,0 130 11930 M14 M14, M16 V0-200000-0090 PBNa - 10 10,0 140 21140 M16 V0-200000-0100 D Die stocks Mark l M INDEX 11 PBGa/m - 16x5PBGa/m - 20x5 160185 M1 ÷ M2,5 V0-103000-1605M3 ÷ M6V0-103000-2005 PBGa/m - 25x9 220 M7 ÷ M9 V0-103000-2509 PBGa/m - 30x11 260 M10 ÷ M11 V0-103000-3011 PBGa/m - 38x14 310 M12 ÷ M14 V0-103000-3814 PBGa/m - 45x18 400 M16 ÷ M20 V0-103000-4518 PBGa/m - 55x22 500 M22 ÷ M24 V0-103000-5522 PBGa/m - 65x25 560 M27 ÷ M36 V0-103000-6525 Example of order 268 V0-103000-1605 PBGa/m-16x5
