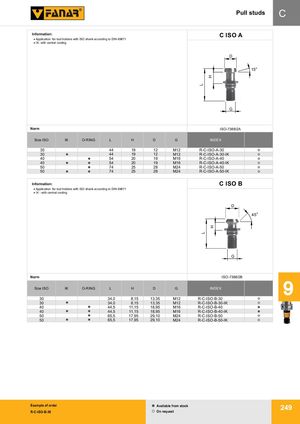

LL HH Pull studs C Information: C ISO A · Application: for tool holders with ISO shank according to DIN-69871 · IK- with central cooling D 15o G Norm ISO-7388/2A Size ISO IK O-RING L H D G INDEX 30 44 19 12 M12 R-C-ISO-A-30 30 44 19 12 M12 R-C-ISO-A-30-IK 40 54 20 19 M16 R-C-ISO-A-40 40 54 20 19 M16 R-C-ISO-A-40-IK 50 74 25 28 M24 R-C-ISO-A-50 50 74 25 28 M24 R-C-ISO-A-50-IK Information: C ISO B · Application: for tool holders with ISO shank according to DIN-69871 · IK - with central cooling D 45o G Norm ISO-7388/2B Size ISO IK O-RING L H D G INDEX 9 30 34,0 8,15 13,35 M12 R-C-ISO-B-30 30 34,0 8,15 13,35 M12 R-C-ISO-B-30-IK 40 44,5 11,15 18,95 M16 R-C-ISO-B-40 40 44,5 11,15 18,95 M16 R-C-ISO-B-40-IK 50 65,5 17,95 29,10 M24 R-C-ISO-B-50 50 65,5 17,95 29,10 M24 R-C-ISO-B-50-IK Example of order Available from stock 249 R-C-ISO-B-30 On request 8
