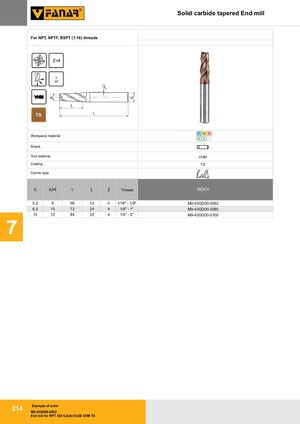

1°47' d1 d2 Solid carbide tapered End mill For NPT, NPTF, BSPT (1:16) threads ZZ=24 l 300°° VHM l2 TS l1 P M K Workpiece material N S H Shank Tool material VHM Coating TS Corner type d1 d2h6 l1 l2 Z Threads INDEX 5,2 6 58 12 4 1/16" - 1/8"Tolerancja M9-43GD00-0052 8,5 10 73 24 4 1/8" - 1" M9-43GD00-0085 10 12 84 33 4 1/4" - 3" M9-43GD00-0100 7 Example of order 214 M9-43GD00-0052 End mill for NPT 430 5,2x6x12x58 VHM TS
