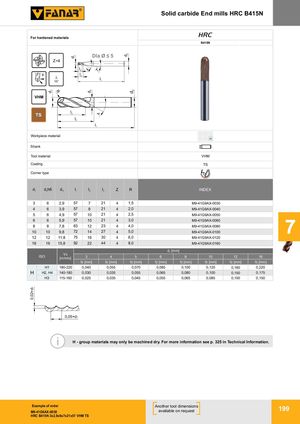

0,02×d1 d1 d1 d3 7oλ d2 d2 R Solid carbide End mills HRC B415N For hardened materials HRC B415N Dla Ø ≤ 5 Z=4 l2 λ B l3 l15° l1 VHM TS l2 l3 l1 P M K Workpiece material N S H Shank Tool material VHM Coating TS Corner type d1 d2h6 d3 l1 l2 l3 Z R INDEX 3 6 2,9 57 7 21 4 1,5 M9-41G9AX-0030 Tolerancja 4 6 3,9 57 8 21 4 2,0 M9-41G9AX-0040 5 6 4,9 57 10 21 4 2,5 M9-41G9AX-0050 6 6 5,9 57 10 21 4 3,0 M9-41G9AX-0060 8 8 7,8 63 12 23 4 4,0 M9-41G9AX-008010109,872142745,0M9-41G9AX-0100 7 12 12 11,8 75 16 30 4 6,0 M9-41G9AX-0120 16 16 15,8 92 22 44 4 8,0 M9-41G9AX-0160 d1 [mm] Vc ISO [m/min] 3 4 5 6 8 10 12 16 fz [mm] fz [mm] fz [mm] fz [mm] fz [mm] fz [mm] fz [mm] fz [mm] H1 180-220 0,040 0,055 0,070 0,085 0,100 0,120 0,160 0,220 H H2, H4 140-180 0,030 0,035 0,055 0,065 0,080 0,100 0,150 0,175 H3 115-160 0,025 0,035 0,045 0,055 0,065 0,085 0,100 0,150 0,05×d1 i H - group materials may only be machined dry. For more information see p. 325 in Technical Information. Example of order Another tool dimensions M9-41G9AX-0030 available on request 199 HRC B415N 3x2,9x6x7x21x57 VHM TS
