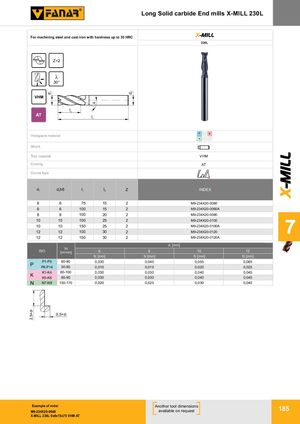

2,5×d1 d1 λ d2 X-MILL Long Solid carbide End mills X-MILL 230L For machining steel and cast iron with hardness up to 35 HRC X-MILL 230L Z=2 l 30° VHM l2 AT l1 P M K Workpiece material N S H Shank Tool material VHM Coating AT Corner type d1 d2h6 l1 l2 Z INDEX 6 6 75 15 2 M9-234X20-0060 Tolerancja 6 6 100 15 2 M9-234X20-0060A 8 8 100 20 2 M9-234X20-0080 10 10 100 25 2 M9-234X20-0100 10 10 150 25 2 M9-234X20-0100A1212100302M9-234X20-0120 7 12 12 150 30 2 M9-234X20-0120A d1 [mm] Vc ISO [m/min] 6 8 10 12 fz [mm] fz [mm] fz [mm] fz [mm] P1-P5 60-90 0,030 0,040 0,055 0,065 P P6-P14 50-80 0,010 0,015 0,020 0,025 K1-K4 80-100 0,030 0,030 0,040 0,045 K K5-K6 80-90 0,030 0,030 0,040 0,045 N N7-N9 150-170 0,020 0,025 0,030 0,040 0,5×d1 Example of order Another tool dimensions M9-234X20-0060 available on request 185 X-MILL 230L 6x6x15x75 VHM AT
