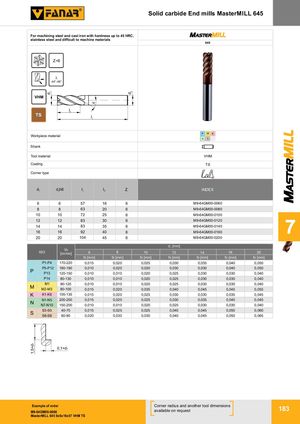

1,5×d1 d1 λ d2 MASTERMILL Solid carbide End mills MasterMILL 645 For machining steel and cast iron with hardness up to 45 HRC, MASTERMILL stainless steel and difficult to machine materials 645 Z=6 l 44°-46° VHM l2 TS l1 P M K Workpiece material N S H Shank Tool material VHM Coating TS Corner type d1 d2h6 l1 l2 Z INDEX Toler6ancja 6 57 16 6 M9-64GM00-0060 8 8 63 20 6 M9-64GM00-0080 10 10 72 25 6 M9-64GM00-0100 12 12 83 30 6 M9-64GM00-0120 14 14 83 35 6161692406 M9-64GM00-0140M9-64GM00-0160 7 20 20 104 45 6 M9-64GM00-0200 d1 [mm] Vc ISO [m/min] 6 8 10 12 14 16 20 fz [mm] fz [mm] fz [mm] fz [mm] fz [mm] fz [mm] fz [mm] P1-P4 170-220 0,015 0,020 0,025 0,030 0,035 0,040 0,050 P5-P12 160-190 0,010 0,020 0,020 0,030 0,030 0,040 0,050 P P13 120-150 0,010 0,010 0,020 0,025 0,030 0,030 0,040 P14 80-130 0,010 0,010 0,020 0,025 0,030 0,030 0,040 M1 90-120 0,010 0,010 0,020 0,025 0,030 0,030 0,040 M M2-M3 80-100 0,015 0,020 0,035 0,040 0,045 0,045 0,055 K K1-K6 105-135 0,015 0,020 0,025 0,030 0,030 0,035 0,045 N1-N5 200-250 0,015 0,020 0,025 0,030 0,035 0,040 0,045 N N7-N10 150-200 0,010 0,010 0,020 0,025 0,030 0,030 0,040 S3-S5 40-70 0,015 0,025 0,025 0,040 0,045 0,050 0,060 S S6-S8 60-90 0,020 0,030 0,030 0,040 0,045 0,050 0,065 0,1×d1 Example of order Corner radius and another tool dimensions M9-64GM00-0060 available on request 183 MasterMILL 645 6x6x16x57 VHM TS
