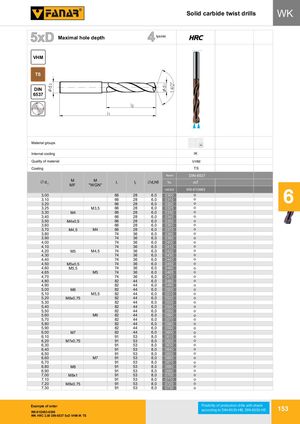

Общий каталог FANAR 2021 - страница 156
Навигация
Общий каталог FANAR 2018
Каталог FANAR цельные твердосплавные фрезы
Цельнотвердосплавные спиральные сверла WK
5xD Максимальная глубина сверления, 4 лыски, HRC
VHM, TS, DIN 6537
Группы материалов, Внутреннее охлаждение, Качество материала, Покрытие
| Ćd1 | M | M MF | M "WGN" | l1 | l2 | Ćd2h6 | INDEX W9-61G963 |
|---|---|---|---|---|---|---|---|
| 3,00 | 66 | 28 | 6,0 | 0300 | |||
| 3,10 | 66 | 28 | 6,0 | 0310 | |||
| 3,20 | 66 | 28 | 6,0 | 0320 | |||
| 3,25 | M3,5 | 66 | 28 | 6,0 | 0325 | ||
| 3,30 | M4 | 66 | 28 | 6,0 | 0330 | ||
| 3,40 | 66 | 28 | 6,0 | 0340 | |||
| 3,50 | M4x0,5 | 66 | 28 | 6,0 | 0350 | ||
| 3,60 | 66 | 28 | 6,0 | 0360 | |||
| 3,70 | M4,5 | M4 | 66 | 28 | 6,0 | 0370 | |
| 3,80 | 74 | 36 | 6,0 | 0380 | |||
| 3,90 | 74 | 36 | 6,0 | 0390 | |||
| 4,00 | 74 | 36 | 6,0 | 0400 | |||
| 4,10 | 74 | 36 | 6,0 | 0410 | |||
| 4,20 | M5 | M4,5 | 74 | 36 | 6,0 | 0420 | |
| 4,30 | 74 | 36 | 6,0 | 0430 | |||
| 4,40 | 74 | 36 | 6,0 | 0440 | |||
| 4,50 | M5x0,5 | 74 | 36 | 6,0 | 0450 | ||
| 4,60 | M5,5 | 74 | 36 | 6,0 | 0460 | ||
| 4,65 | M5 | 74 | 36 | 6,0 | 0465 | ||
| 4,70 | 74 | 36 | 6,0 | 0470 | |||
| 4,80 | 82 | 44 | 6,0 | 0480 | |||
| 4,90 | 82 | 44 | 6,0 | 0490 | |||
| 5,00 | M6 | 82 | 44 | 6,0 | 0500 | ||
| 5,10 | M5,5 | 82 | 44 | 6,0 | 0510 | ||
| 5,20 | M6x0,75 | 82 | 44 | 6,0 | 0520 | ||
| 5,30 | 82 | 44 | 6,0 | 0530 | |||
| 5,40 | 82 | 44 | 6,0 | 0540 | |||
| 5,50 | 82 | 44 | 6,0 | 0550 | |||
| 5,60 | M6 | 82 | 44 | 6,0 | 0560 | ||
| 5,70 | 82 | 44 | 6,0 | 0570 | |||
| 5,80 | 82 | 44 | 6,0 | 0580 | |||
| 5,90 | 82 | 44 | 6,0 | 0590 | |||
| 6,00 | M7 | 82 | 44 | 6,0 | 0600 | ||
| 6,10 | 91 | 53 | 8,0 | 0610 | |||
| 6,20 | M7x0,75 | 91 | 53 | 8,0 | 0620 | ||
| 6,30 | 91 | 53 | 8,0 | 0630 | |||
| 6,40 | 91 | 53 | 8,0 | 0640 | |||
| 6,50 | 91 | 53 | 8,0 | 0650 | |||
| 6,60 | M7 | 91 | 53 | 8,0 | 0660 | ||
| 6,70 | 91 | 53 | 8,0 | 0670 | |||
| 6,80 | M8 | 91 | 53 | 8,0 | 0680 | ||
| 6,90 | 91 | 53 | 8,0 | 0690 | |||
| 7,00 | M8x1 | 91 | 53 | 8,0 | 0700 | ||
| 7,10 | 91 | 53 | 8,0 | 0710 | |||
| 7,20 | M8x0,75 | 91 | 53 | 8,0 | 0720 | ||
| 7,30 | 91 | 53 | 8,0 | 0730 |
Пример заказа: W9-61G963-0300
WK HRC 3,00 DIN-6537 5xD VHM IK TS
Возможность изготовления сверл с хвостовиком по DIN-6535-HB, DIN-6535-HE.
