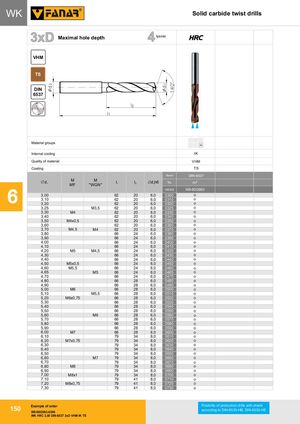

WK Solid carbide twist drills 3xD Maximal hole depth 4 łysinki HRC VHM TS DIN 6537 P M PK M K Material groups N S NH S H Internal cooling IK Quality of material VHM Coating TS Norm DIN-6537 NakrójĆ/ Cd1hamfer MMF M"WGN" l1 l2 Ćd2h6 Tol. m7 INDEX W9-60G963 6 3,003,10 62 20 6,0 030062206,00310 3,20 62 20 6,0 0320 3,25 M3,5 62 20 6,0 0325 3,30 M4 62 20 6,0 0330 3,40 62 20 6,0 0340 3,50 M4x0,5 62 20 6,0 0350 3,60 62 20 6,0 0360 3,70 M4,5 M4 62 20 6,0 0370 3,80 66 24 6,0 0380 3,90 66 24 6,0 0390 4,00 66 24 6,0 0400 4,10 66 24 6,0 0410 4,20 M5 M4,5 66 24 6,0 0420 4,30 66 24 6,0 0430 4,40 66 24 6,0 0440 4,50 M5x0,5 66 24 6,0 0450 4,60 M5,5 66 24 6,0 0460 7 4,654,70 M5 66 24 6,0 046566246,00470 4,80 66 28 6,0 0480 4,90 66 28 6,0 0490 5,00 M6 66 28 6,0 0500 5,10 M5,5 66 28 6,0 0510 5,20 M6x0,75 66 28 6,0 0520 5,30 66 28 6,0 0530 5,40 66 28 6,0 0540 5,50 66 28 6,0 0550 5,60 M6 66 28 6,0 0560 5,70 66 28 6,0 0570 5,80 66 28 6,0 0580 5,90 66 28 6,0 0590 6,00 M7 66 28 6,0 0600 6,10 79 34 8,0 0610 6,20 M7x0,75 79 34 8,0 0620 6,30 79 34 8,0 0630 6,40 79 34 8,0 0640 6,50 79 34 8,0 0650 6,60 M7 79 34 8,0 0660 6,70 79 34 8,0 0670 6,80 M8 79 34 8,0 0680 6,90 79 34 8,0 0690 7,00 M8x1 79 34 8,0 0700 7,10 79 41 8,0 0710 7,20 M8x0,75 79 41 8,0 0720 7,30 79 41 8,0 0730 Example of order Posibility of production drills with shank 150 according to DIN-6535-HB, DIN-6535-HE W9-60G963-0300 WK HRC 3,00 DIN-6537 3xD VHM IK TS
