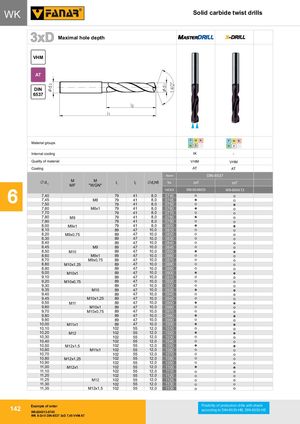

WK Solid carbide twist drills 3xD Maximal hole depth MASTERDRILL VHM AT DIN 6537 P M PK M K P M K Material groups N S NH S H N S H Internal cooling IK - Quality of material VHM VHM Coating AT AT Norm DIN-6537 NakróĆj / Cdh1amfer MMF M"WGN" l1 l2 Ćd2h6 Tol. m7 m7 INDEX W9-604M33 W9-604X13 6 7,407,45 79 41 8,0 0740M879418,00745 7,50 79 41 8,0 0750 7,60 M8x1 79 41 8,0 0760 7,70 79 41 8,0 0770 7,80 M9 79 41 8,0 0780 7,90 79 41 8,0 0790 8,00 M9x1 79 41 8,0 0800 8,10 89 47 10,0 0810 8,20 M9x0,75 89 47 10,0 0820 8,30 89 47 10,0 0830 8,40 89 47 10,0 0840 8,45 M9 89 47 10,0 0845 8,50 M10 89 47 10,0 0850 8,60 M9x1 89 47 10,0 0860 8,70 M9x0,75 89 47 10,0 0870 8,80 M10x1,25 89 47 10,0 0880 8,90 89 47 10,0 0890 7 9,00 M10x19,10 89 47 10,0 0900894710,00910 9,20 M10x0,75 89 47 10,0 0920 9,30 89 47 10,0 0930 9,35 M10 89 47 10,0 0935 9,40 89 47 10,0 0940 9,45 M10x1,25 89 47 10,0 0945 9,50 M11 89 47 10,0 0950 9,60 M10x1 89 47 10,0 0960 9,70 M10x0,75 89 47 10,0 0970 9,80 89 47 10,0 0980 9,90 89 47 10,0 0990 10,00 M11x1 89 47 10,0 1000 10,10 102 55 12,0 1010 10,20 M12 102 55 12,0 1020 10,30 102 55 12,0 1030 10,40 102 55 12,0 1040 10,50 M12x1,5 102 55 12,0 1050 10,60 M11x1 102 55 12,0 1060 10,70 102 55 12,0 1070 10,80 M12x1,25 102 55 12,0 1080 10,90 102 55 12,0 1090 11,00 M12x1 102 55 12,0 1100 11,10 102 55 12,0 1110 11,20 102 55 12,0 1120 11,25 M12 102 55 12,0 1125 11,30 102 55 12,0 1130 11,35 M12x1,5 102 55 12,0 1135 Example of order Posibility of production drills with shank 142 according to DIN-6535-HB, DIN-6535-HE W9-604X13-0745 WK X-Drill DIN-6537 3xD 7,45 VHM AT
