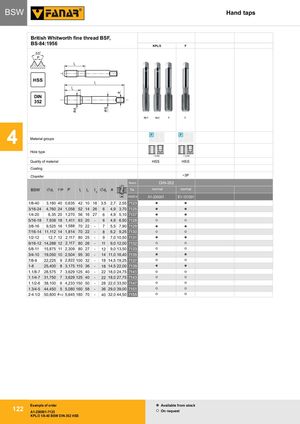

Ручные метчики BSW — мелкая резьба Whitworth BSF, BS-84:1956
| BSW | Ćd1 1''/P | P | l1 | l2 | l3 | Ćd2 | a | Tol. | A1-230001 | E1-131001 |
|---|---|---|---|---|---|---|---|---|---|---|
| 1/8-40 | 3,180 | 40 | 0,635 | 42 | 10 | 18 | 3,5 | 2,7 | 2,55 | 7123 |
| 3/16-24 | 4,760 | 24 | 1,058 | 52 | 14 | 26 | 6 | 4,9 | 3,70 | 7125 |
| 1/4-20 | 6,35 | 20 | 1,270 | 56 | 16 | 27 | 6 | 4,9 | 5,10 | 7127 |
| 5/16-18 | 7,938 | 18 | 1,411 | 63 | 20 | - | 6 | 4,9 | 6,50 | 7128 |
| 3/8-16 | 9,525 | 16 | 1,588 | 70 | 22 | - | 7 | 5,5 | 7,90 | 7129 |
| 7/16-14 | 11,112 | 14 | 1,814 | 70 | 22 | - | 8 | 6,2 | 9,25 | 7130 |
| 1/2-12 | 12,7 | 12 | 2,117 | 80 | 25 | - | 9 | 7,0 | 10,50 | 7131 |
| 9/16-12 | 14,288 | 12 | 2,117 | 80 | 26 | - | 11 | 9,0 | 12,00 | 7132 |
| 5/8-11 | 15,875 | 11 | 2,309 | 80 | 27 | - | 12 | 9,0 | 13,50 | 7133 |
| 3/4-10 | 19,050 | 10 | 2,504 | 95 | 30 | - | 14 | 11,0 | 16,40 | 7135 |
| 7/8-9 | 22,225 | 9 | 2,822 | 100 | 32 | - | 18 | 14,5 | 19,25 | 7137 |
| 1-8 | 25,400 | 8 | 3,175 | 110 | 36 | - | 18 | 14,5 | 22,00 | 7139 |
| 1.1/8-7 | 28,575 | 7 | 3,629 | 125 | 40 | - | 22 | 18,0 | 24,75 | 7141 |
| 1.1/4-7 | 31,750 | 7 | 3,629 | 125 | 40 | - | 22 | 18,0 | 27,75 | 7143 |
| 1.1/2-6 | 38,100 | 6 | 4,233 | 150 | 50 | - | 28 | 22,0 | 33,50 | 7147 |
| 1.3/4-5 | 44,450 | 5 | 5,080 | 160 | 58 | - | 36 | 29,0 | 39,00 | 7151 |
| 2-4.1/2 | 50,800 | 4½ | 5,645 | 180 | 70 | - | 40 | 32,0 | 44,50 | 7155 |
Пример заказа
A1-230001-7123
KPL/3 1/8-40 BSW DIN-352 HSS
Есть на складе / По запросу
