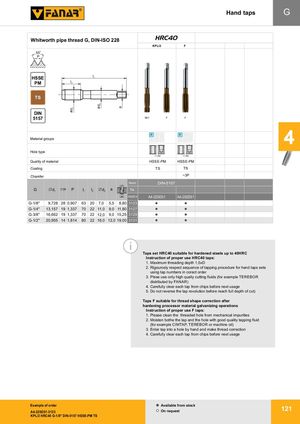

d1 d2 a Hand taps G Whitworth pipe thread G, DIN-ISO 228 HRC40 KPL-800 Gwint metryczny drobnozwojny ISO DIN-13 KPL/2 F 550 P HSSE l1 PM l2 TS DIN5157 Nr1 F F 3 Material groups P M K P M KNSHNSH 4 Hole type < 1,5d < 1,5d Quality of material HSSE-PM HSSE-PM Coating TS TS Chamfer ~3P Norm DIN-5157 G Ć d1 1''/P P l1 l2 Ć d2 a Tol. INDEX A4-225D51 A4-202D51 G-1/8'' 9,728 28 0,907 63 20 7,0 5,5 8,80 3123 G-1/4'' 13,157 19 1,337 70 22 11,0 9,0 11,80 3127 G-3/8'' 16,662 19 1,337 70 22 12,0 9,0 15,25 3129 G-1/2'' 20,955 14 1,814 80 22 16,0 12,0 19,00 3131 i Taps set HRC40 suitable for hardened steels up to 40HRC Instruction of proper use HRC40 taps: 1. Maximum threading depth 1,5xD 2. Rigourosly respect sequence of tapping procedure for hand taps sets using tap numbers in corect order 3. Plese use only high qualiy cutting fluids (for example TEREBOR distributed by FANAR) 4. Carefully clear each tap from chips before next usage 5. Do not reverse the tap revolution before reach full depth of cut) Taps F suitable for thread shape correction after hardening processor material galvanizing operations Instruction of proper use F taps: 1. Please clean the threaded hole from mechanical impurities 2. Moisten bothe the tap and the hole with good quality tapping fluid (for example CIMTAP, TEREBOR or machine oil) 3. Enter tap into a hole by hand and make thread correction 4. Carefully clear each tap from chips before next usage Example of order Available from stock A4-225D51-3123 On request 121 KPL/2 HRC40 G-1/8'' DIN-5157 HSSE-PM TS
