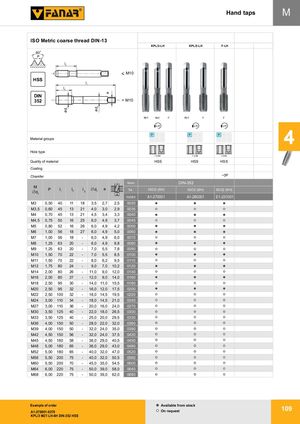

Метчики ручные
M
ISO метрическая крупная резьба DIN-13. Метрическая мелкая резьба ISO DIN-13. KPL-800.
KPL/3-LH, KPL/2-LH, F-LH (левая резьба).
Качество материала: HSS. Тип отверстия: < 2,5d. Норма: DIN-352. Допуск: ISO2 (6H). Фаска: ~3P (для F-LH).
| M Ćd1 | P | l1 | l2 | l3 | Ćd2 | a | INDEX (KPL/3-LH, A1-270001) | INDEX (KPL/2-LH, A1-260001) | INDEX (F-LH, E1-231001) |
|---|---|---|---|---|---|---|---|---|---|
| M3 | 0,50 | 40 | 11 | 18 | 3,5 | 2,7/2,5 | 0030 | ||
| M3,5 | 0,60 | 45 | 13 | 21 | 4,0 | 3,0/2,9 | 0035 | ||
| M4 | 0,70 | 45 | 13 | 21 | 4,5 | 3,4/3,3 | 0040 | ||
| M4,5 | 0,75 | 50 | 16 | 25 | 6,0 | 4,9/3,7 | 0045 | ||
| M5 | 0,80 | 52 | 16 | 26 | 6,0 | 4,9/4,2 | 0050 | ||
| M6 | 1,00 | 56 | 18 | 27 | 6,0 | 4,9/5,0 | 0060 | ||
| M7 | 1,00 | 56 | 18 | - | 6,0 | 4,9/6,0 | 0070 | ||
| M8 | 1,25 | 63 | 20 | - | 6,0 | 4,9/6,8 | 0080 | ||
| M9 | 1,25 | 63 | 20 | - | 7,0 | 5,5/7,8 | 0090 | ||
| M10 | 1,50 | 70 | 22 | - | 7,0 | 5,5/8,5 | 0100 | ||
| M11 | 1,50 | 70 | 22 | - | 8,0 | 6,2/9,5 | 0110 | ||
| M12 | 1,75 | 80 | 24 | - | 9,0 | 7,0/10,2 | 0120 | ||
| M14 | 2,00 | 80 | 26 | - | 11,0 | 9,0/12,0 | 0140 | ||
| M16 | 2,00 | 80 | 27 | - | 12,0 | 9,0/14,0 | 0160 | ||
| M18 | 2,50 | 95 | 30 | - | 14,0 | 11,0/15,5 | 0180 | ||
| M20 | 2,50 | 95 | 32 | - | 16,0 | 12,0/17,5 | 0200 | ||
| M22 | 2,50 | 100 | 32 | - | 18,0 | 14,5/19,5 | 0220 | ||
| M24 | 3,00 | 110 | 34 | - | 18,0 | 14,5/21,0 | 0240 | ||
| M27 | 3,00 | 110 | 36 | - | 20,0 | 16,0/24,0 | 0270 | ||
| M30 | 3,50 | 125 | 40 | - | 22,0 | 18,0/26,5 | 0300 | ||
| M33 | 3,50 | 125 | 40 | - | 25,0 | 20,0/29,5 | 0330 | ||
| M36 | 4,00 | 150 | 50 | - | 28,0 | 22,0/32,0 | 0360 | ||
| M39 | 4,00 | 150 | 50 | - | 32,0 | 24,0/35,0 | 0390 | ||
| M42 | 4,50 | 150 | 56 | - | 32,0 | 24,0/37,5 | 0420 | ||
| M45 | 4,50 | 160 | 58 | - | 36,0 | 29,0/40,5 | 0450 | ||
| M48 | 5,00 | 180 | 65 | - | 36,0 | 29,0/43,0 | 0480 | ||
| M52 | 5,00 | 180 | 65 | - | 40,0 | 32,0/47,0 | 0520 | ||
| M56 | 5,50 | 200 | 75 | - | 40,0 | 32,0/50,5 | 0560 | ||
| M60 | 5,50 | 200 | 70 | - | 45,0 | 35,0/54,5 | 0600 | ||
| M64 | 6,00 | 220 | 75 | - | 50,0 | 39,0/58,0 | 0640 | ||
| M68 | 6,00 | 220 | 75 | - | 50,0 | 39,0/62,0 | 0680 |
Пример заказа
A1-270001-0270
KPL/3 M27-LH-6H DIN-352 HSS
Наличие на складе: по запросу.
