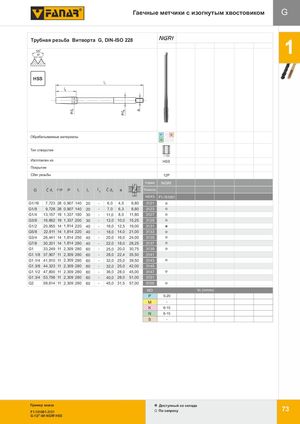

Общий каталог FANAR 2018 - страница 77
Навигация
Каталог FANAR цельные твердосплавные фрезы
Общий каталог FANAR 2021
Гаечные метчики с изогнутым хвостовиком — G
Трубная резьба Витворта G, DIN-ISO 228, 55
HSSE, P, PM, 0
NGRf
HSS
| Обрабатываемые материалы | P | M | K | N | S | H |
|---|
Тип отверстия: < 1,5d
Изготовлен из: HSS
Покрытие
Сбег резьбы: 12P
| Норма | NGRf |
|---|---|
| INDEX | F1-151001 |
| G | Ćd1 | 1''/P | P | l1 | l2 | l3 | Ćd2 | a | INDEX | |
|---|---|---|---|---|---|---|---|---|---|---|
| G1/16 | 7,723 | 28 | 0,907 | 140 | 20 | - | 6,0 | 4,5 | 6,80 | 3121 |
| G1/8 | 9,728 | 28 | 0,907 | 140 | 20 | - | 7,0 | 6,3 | 8,80 | 3123 |
| G1/4 | 13,157 | 19 | 1,337 | 180 | 30 | - | 11,0 | 8,0 | 11,80 | 3127 |
| G3/8 | 16,662 | 19 | 1,337 | 200 | 30 | - | 12,0 | 10,0 | 15,25 | 3129 |
| G1/2 | 20,955 | 14 | 1,814 | 220 | 40 | - | 16,0 | 12,5 | 19,00 | 3131 |
| G5/8 | 22,911 | 14 | 1,814 | 220 | 40 | - | 18,0 | 14,0 | 21,00 | 3133 |
| G3/4 | 26,441 | 14 | 1,814 | 250 | 40 | - | 20,0 | 16,0 | 24,00 | 3135 |
| G7/8 | 30,201 | 14 | 1,814 | 280 | 40 | - | 22,0 | 18,0 | 28,25 | 3137 |
| G1 | 33,249 | 11 | 2,309 | 280 | 60 | - | 25,0 | 20,0 | 30,75 | 3139 |
| G1.1/8 | 37,907 | 11 | 2,309 | 280 | 60 | - | 28,0 | 22,4 | 35,50 | 3141 |
| G1.1/4 | 41,910 | 11 | 2,309 | 280 | 60 | - | 32,0 | 25,0 | 39,50 | 3143 |
| G1.3/8 | 44,323 | 11 | 2,309 | 280 | 60 | - | 32,0 | 25,0 | 42,00 | 3145 |
| G1.1/2 | 47,800 | 11 | 2,309 | 280 | 60 | - | 36,0 | 28,0 | 45,00 | 3147 |
| G1.3/4 | 53,756 | 11 | 2,309 | 280 | 60 | - | 40,0 | 28,0 | 51,00 | 3151 |
| G2 | 59,614 | 11 | 2,309 | 280 | 60 | - | 45,0 | 31,5 | 57,00 | 3155 |
| ISO | Vc (m/min) |
|---|---|
| P | 5-20 |
| M | - |
| K | 6-15 |
| N | 6-15 |
| S | - |
Пример заказа: F1-151001-3131, G-1/2"-6H NGRf HSS
Доступный со склада: По запросу
