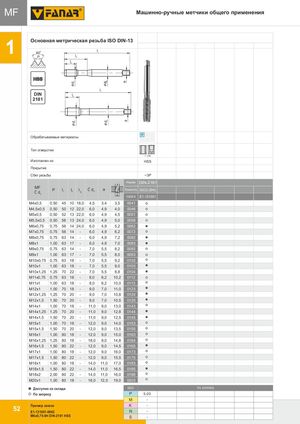

Общий каталог FANAR 2018 - страница 56
Навигация
Каталог FANAR цельные твердосплавные фрезы
Общий каталог FANAR 2021
MF — Машинно-ручные метчики общего применения
Основная метрическая резьба ISO DIN-13, 60°, HSSE-PM-P
| Характеристика | Значение |
|---|---|
| Группы ISO | P, M, K, N, S, H |
| Тип отверстия (глубина) | < 1,5d |
| Изготовлен из | HSS |
| Сбег резьбы | ~3P |
| Норма | DIN-2181 |
| Точность | ISO2 (6H) |
| INDEX | E1-131001 |
Размеры
| MF | P | l1 | l2 | l3 | Ø d2 | Ø d1 | a | INDEX |
|---|---|---|---|---|---|---|---|---|
| M4x0,5 | 0,50 | 45 | 10 | 18,0 | 4,5 | 3,4 | 3,5 | 0041 |
| M4,5x0,5 | 0,50 | 50 | 12 | 22,0 | 6,0 | 4,9 | 4,0 | 0046 |
| M5x0,5 | 0,50 | 52 | 13 | 22,0 | 6,0 | 4,9 | 4,5 | 0051 |
| M5,5x0,5 | 0,50 | 56 | 13 | 24,0 | 6,0 | 4,9 | 5,0 | 0056 |
| M6x0,75 | 0,75 | 56 | 14 | 24,0 | 6,0 | 4,9 | 5,2 | 0062 |
| M7x0,75 | 0,75 | 56 | 14 | - | 6,0 | 4,9 | 6,2 | 0072 |
| M8x0,75 | 0,75 | 63 | 14 | - | 6,0 | 4,9 | 7,2 | 0082 |
| M8x1 | 1,00 | 63 | 17 | - | 6,0 | 4,9 | 7,0 | 0083 |
| M9x0,75 | 0,75 | 63 | 14 | - | 7,0 | 5,5 | 8,2 | 0092 |
| M9x1 | 1,00 | 63 | 17 | - | 7,0 | 5,5 | 8,0 | 0093 |
| M10x0,75 | 0,75 | 63 | 18 | - | 7,0 | 5,5 | 9,2 | 0102 |
| M10x1 | 1,00 | 63 | 18 | - | 7,0 | 5,5 | 9,0 | 0103 |
| M10x1,25 | 1,25 | 70 | 22 | - | 7,0 | 5,5 | 8,8 | 0104 |
| M11x0,75 | 0,75 | 63 | 18 | - | 8,0 | 6,2 | 10,2 | 0112 |
| M11x1 | 1,00 | 63 | 18 | - | 8,0 | 6,2 | 10,0 | 0113 |
| M12x1 | 1,00 | 70 | 18 | - | 9,0 | 7,0 | 11,0 | 0123 |
| M12x1,25 | 1,25 | 70 | 20 | - | 9,0 | 7,0 | 10,8 | 0124 |
| M12x1,5 | 1,50 | 70 | 20 | - | 9,0 | 7,0 | 10,5 | 0125 |
| M14x1 | 1,00 | 70 | 18 | - | 11,0 | 9,0 | 13,0 | 0143 |
| M14x1,25 | 1,25 | 70 | 20 | - | 11,0 | 9,0 | 12,8 | 0144 |
| M14x1,5 | 1,50 | 70 | 20 | - | 11,0 | 9,0 | 12,5 | 0145 |
| M15x1 | 1,00 | 70 | 18 | - | 12,0 | 9,0 | 14,0 | 0153 |
| M15x1,5 | 1,50 | 70 | 20 | - | 12,0 | 9,0 | 13,5 | 0155 |
| M16x1 | 1,00 | 80 | 18 | - | 12,0 | 9,0 | 15,0 | 0163 |
| M16x1,25 | 1,25 | 80 | 18 | - | 18,0 | 9,0 | 14,8 | 0164 |
| M16x1,5 | 1,50 | 80 | 22 | - | 12,0 | 9,0 | 14,5 | 0165 |
| M17x1 | 1,00 | 80 | 18 | - | 12,0 | 9,0 | 16,0 | 0173 |
| M17x1,5 | 1,50 | 80 | 22 | - | 12,0 | 9,0 | 15,5 | 0175 |
| M18x1 | 1,00 | 80 | 18 | - | 14,0 | 11,0 | 17,0 | 0183 |
| M18x1,5 | 1,50 | 80 | 22 | - | 14,0 | 11,0 | 16,5 | 0185 |
| M18x2 | 2,00 | 80 | 22 | - | 14,0 | 11,0 | 16,0 | 0186 |
| M20x1 | 1,00 | 80 | 18 | - | 16,0 | 12,0 | 19,0 | 0203 |
Скорость резания Vc (м/мин)
| ISO | Значение |
|---|---|
| P | 5-20 |
| M | - |
| K | - |
| N | - |
| S | - |
Доступный со склада: по запросу
Пример заказа: E1-131001-0062 — M6x0,75-6H DIN-2181 HSS
