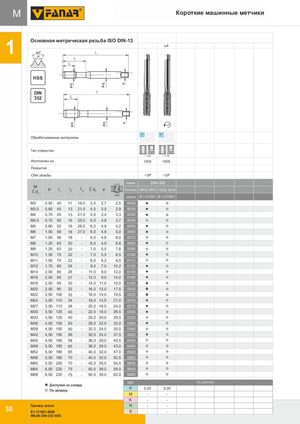

Общий каталог FANAR 2018 - страница 34
Навигация
Каталог FANAR цельные твердосплавные фрезы
Общий каталог FANAR 2021
Короткие машинные метчики общего назначения
Основная метрическая резьба ISO DIN-13, исполнение HSS.
DIN 352
| Параметр | Норма | LH (левая резьба) |
|---|---|---|
| Тип отверстия (глубина) | < 1,5d | < 1,5d |
| Изготовлен из | HSS | HSS |
| Сбег резьбы | ~3P | ~3P |
| Норма | DIN-352 | |
| Точность | ISO2 (6H) | ISO2 (6H) |
| Базовый индекс | E1-131001 | E1-231001 |
| M | P | l1 | l2 | l3 | Ćd2 | a | Ćd1 | Индекс |
|---|---|---|---|---|---|---|---|---|
| M3 | 0,50 | 40 | 11 | 18,0 | 3,5 | 2,7 | 2,5 | 0030 |
| M3,5 | 0,60 | 45 | 13 | 21,0 | 4,0 | 3,0 | 2,9 | 0035 |
| M4 | 0,70 | 45 | 13 | 21,0 | 4,5 | 3,4 | 3,3 | 0040 |
| M4,5 | 0,75 | 50 | 16 | 25,0 | 6,0 | 4,9 | 3,7 | 0045 |
| M5 | 0,80 | 52 | 16 | 26,0 | 6,0 | 4,9 | 4,2 | 0050 |
| M6 | 1,00 | 56 | 18 | 27,0 | 6,0 | 4,9 | 5,0 | 0060 |
| M7 | 1,00 | 56 | 18 | - | 6,0 | 4,9 | 6,0 | 0070 |
| M8 | 1,25 | 63 | 20 | - | 6,0 | 4,9 | 6,8 | 0080 |
| M9 | 1,25 | 63 | 20 | - | 7,0 | 5,5 | 7,8 | 0090 |
| M10 | 1,50 | 70 | 22 | - | 7,0 | 5,5 | 8,5 | 0100 |
| M11 | 1,50 | 70 | 22 | - | 8,0 | 6,2 | 9,5 | 0110 |
| M12 | 1,75 | 80 | 24 | - | 9,0 | 7,0 | 10,2 | 0120 |
| M14 | 2,00 | 80 | 26 | - | 11,0 | 9,0 | 12,0 | 0140 |
| M16 | 2,00 | 80 | 27 | - | 12,0 | 9,0 | 14,0 | 0160 |
| M18 | 2,50 | 95 | 30 | - | 14,0 | 11,0 | 15,5 | 0180 |
| M20 | 2,50 | 95 | 32 | - | 16,0 | 12,0 | 17,5 | 0200 |
| M22 | 2,50 | 100 | 32 | - | 18,0 | 14,5 | 19,5 | 0220 |
| M24 | 3,00 | 110 | 34 | - | 18,0 | 14,5 | 21,0 | 0240 |
| M27 | 3,00 | 110 | 36 | - | 20,0 | 16,0 | 24,0 | 0270 |
| M30 | 3,50 | 125 | 40 | - | 22,0 | 18,0 | 26,5 | 0300 |
| M33 | 3,50 | 125 | 40 | - | 25,0 | 20,0 | 29,5 | 0330 |
| M36 | 4,00 | 150 | 50 | - | 28,0 | 22,0 | 32,0 | 0360 |
| M39 | 4,00 | 150 | 50 | - | 32,0 | 24,0 | 35,0 | 0390 |
| M42 | 4,50 | 150 | 56 | - | 32,0 | 24,0 | 37,5 | 0420 |
| M45 | 4,50 | 160 | 58 | - | 36,0 | 29,0 | 40,5 | 0450 |
| M48 | 5,00 | 180 | 65 | - | 36,0 | 29,0 | 43,0 | 0480 |
| M52 | 5,00 | 180 | 65 | - | 40,0 | 32,0 | 47,0 | 0520 |
| M56 | 5,50 | 180 | 70 | - | 40,0 | 32,0 | 50,5 | 0560 |
| M60 | 5,50 | 200 | 70 | - | 45,0 | 35,0 | 54,5 | 0600 |
| M64 | 6,00 | 220 | 75 | - | 50,0 | 39,0 | 58,0 | 0640 |
| M68 | 6,00 | 220 | 75 | - | 50,0 | 39,0 | 62,0 | 0680 |
| Группа ISO | Норма, Vc (m/min) | LH, Vc (m/min) |
|---|---|---|
| P | 5-20 | 5-20 |
| M | - | - |
| K | - | - |
| N | - | - |
| S | - | - |
Пример заказа: E1-131001-0060 (M6-6H DIN-352 HSS). Доступно со склада / по запросу.
