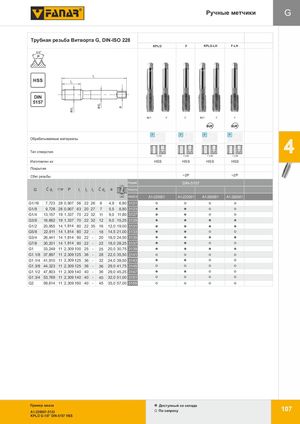

Ручные метчики. Трубная резьба Витворта G, DIN-ISO 228
Комплект KPL-800: KPL/2, F, KPL/2-LH, F-LH, норма DIN-5157.
| Параметр | KPL/2 (Nr1) | F | KPL/2-LH (Nr1) | F-LH |
|---|---|---|---|---|
| Обрабатываемые материалы | P, M, K / N, S, H | P, M, K / N, S, H | P, M, K / N, S, H | P, M, K / N, S, H |
| Тип отверстия | < 2,5d | < 2,5d | < 2,5d | < 2,5d |
| Изготовлен из | HSS | HSS | HSS | HSS |
| Сбег резьбы | - | ~2P | - | ~2P |
| Норма | DIN-5157 | |||
| INDEX | A1-220001 | A1-222001 | A1-260001 | A1-262001 |
| Резьба G | Ćd1 | n (1''/P) | P | l1 | l2 | l3 | Ćd2 | a | Диаметр | № (INDEX) |
|---|---|---|---|---|---|---|---|---|---|---|
| G1/16 | 7,723 | 28 | 0,907 | 56 | 22 | 26 | 6 | 4,9 | 6,80 | 3121 |
| G1/8 | 9,728 | 28 | 0,907 | 63 | 20 | 27 | 7 | 5,5 | 8,80 | 3123 |
| G1/4 | 13,157 | 19 | 1,337 | 70 | 22 | 32 | 11 | 9,0 | 11,80 | 3127 |
| G3/8 | 16,662 | 19 | 1,337 | 70 | 22 | 32 | 12 | 9,0 | 15,25 | 3129 |
| G1/2 | 20,955 | 14 | 1,814 | 80 | 22 | 35 | 16 | 12,0 | 19,00 | 3131 |
| G5/8 | 22,911 | 14 | 1,814 | 80 | 22 | - | 18 | 14,5 | 21,00 | 3133 |
| G3/4 | 26,441 | 14 | 1,814 | 90 | 22 | - | 20 | 16,0 | 24,50 | 3135 |
| G7/8 | 30,201 | 14 | 1,814 | 90 | 22 | - | 22 | 18,0 | 28,25 | 3137 |
| G1 | 33,249 | 11 | 2,309 | 100 | 25 | - | 25 | 20,0 | 30,75 | 3139 |
| G1.1/8 | 37,897 | 11 | 2,309 | 125 | 36 | - | 28 | 22,0 | 35,50 | 3141 |
| G1.1/4 | 41,910 | 11 | 2,309 | 125 | 36 | - | 32 | 24,0 | 39,50 | 3143 |
| G1.3/8 | 44,323 | 11 | 2,309 | 125 | 36 | - | 36 | 29,0 | 41,75 | 3145 |
| G1.1/2 | 47,803 | 11 | 2,309 | 140 | 40 | - | 36 | 29,0 | 45,25 | 3147 |
| G1.3/4 | 53,769 | 11 | 2,309 | 140 | 40 | - | 40 | 32,0 | 51,00 | 3151 |
| G2 | 59,614 | 11 | 2,309 | 160 | 40 | - | 45 | 35,0 | 57,00 | 3155 |
Пример заказа: A1-220001-3123 — KPL/2 G-1/8'' DIN-5157 HSS. Доступный со склада: по запросу.
