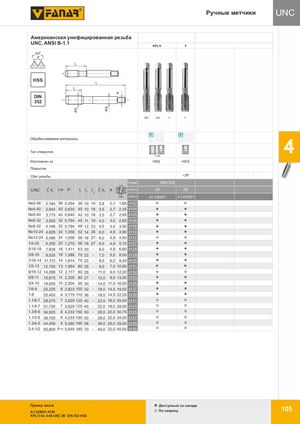

Общий каталог FANAR 2018 - страница 109
Навигация
Каталог FANAR цельные твердосплавные фрезы
Общий каталог FANAR 2021
Ручные метчики. Американская унифицированная резьба UNC, ANSI B-1.1
Комплект KPL-800: KPL/3, F, норма DIN-352.
| Параметр | KPL/3 (Nr1 / Nr2) | F |
|---|---|---|
| Обрабатываемые материалы | P, M, K / N, S, H | P, M, K / N, S, H |
| Тип отверстия | < 2,5d | - |
| Изготовлен из | HSS | HSS |
| Сбег резьбы | - | ~2P |
| Норма | DIN-352 | |
| Точность | 2B | 2B |
| INDEX | A1-230001 | A1-233001 |
| Резьба UNC | Ćd1 | n (1''/P) | P | l1 | l2 | l3 | Ćd2 | a | Диаметр | № (INDEX) |
|---|---|---|---|---|---|---|---|---|---|---|
| No2-56 | 2,184 | 56 | 0,454 | 36 | 10 | 10 | 2,8 | 2,1 | 1,85 | 4102 |
| No4-40 | 2,844 | 40 | 0,635 | 40 | 10 | 18 | 3,5 | 2,7 | 2,35 | 4104 |
| No5-40 | 3,175 | 40 | 0,640 | 42 | 10 | 18 | 3,5 | 2,7 | 2,65 | 4105 |
| No6-32 | 3,505 | 32 | 0,794 | 45 | 11 | 18 | 4,0 | 3,0 | 2,85 | 4106 |
| No8-32 | 4,166 | 32 | 0,794 | 48 | 12 | 23 | 4,5 | 3,4 | 3,50 | 4108 |
| No10-24 | 4,826 | 24 | 1,058 | 52 | 14 | 26 | 6,0 | 4,9 | 3,90 | 4110 |
| No12-24 | 5,486 | 24 | 1,058 | 56 | 16 | 27 | 6,0 | 4,9 | 4,50 | 4112 |
| 1/4-20 | 6,350 | 20 | 1,270 | 56 | 16 | 27 | 6,0 | 4,9 | 5,10 | 4127 |
| 5/16-18 | 7,938 | 18 | 1,411 | 63 | 20 | - | 6,0 | 4,9 | 6,60 | 4128 |
| 3/8-16 | 9,525 | 16 | 1,588 | 70 | 22 | - | 7,0 | 5,5 | 8,00 | 4129 |
| 7/16-14 | 11,112 | 14 | 1,814 | 70 | 22 | - | 8,0 | 6,2 | 9,40 | 4130 |
| 1/2-13 | 12,700 | 13 | 1,954 | 80 | 25 | - | 9,0 | 7,0 | 10,80 | 4131 |
| 9/16-12 | 14,288 | 12 | 2,117 | 80 | 26 | - | 11,0 | 9,0 | 12,20 | 4132 |
| 5/8-11 | 15,875 | 11 | 2,309 | 80 | 27 | - | 12,0 | 9,0 | 13,50 | 4133 |
| 3/4-10 | 19,050 | 10 | 2,504 | 95 | 30 | - | 14,0 | 11,0 | 16,50 | 4135 |
| 7/8-9 | 22,225 | 9 | 2,822 | 100 | 32 | - | 18,0 | 14,5 | 19,50 | 4137 |
| 1-8 | 25,400 | 8 | 3,175 | 110 | 36 | - | 18,0 | 14,5 | 22,25 | 4139 |
| 1.1/8-7 | 28,575 | 7 | 3,629 | 125 | 40 | - | 22,0 | 18,0 | 25,00 | 4141 |
| 1.1/4-7 | 31,750 | 7 | 3,629 | 125 | 40 | - | 22,0 | 18,0 | 28,00 | 4143 |
| 1.3/8-6 | 34,925 | 6 | 4,233 | 150 | 50 | - | 28,0 | 22,0 | 30,75 | 4145 |
| 1.1/2-6 | 38,100 | 6 | 4,233 | 150 | 50 | - | 28,0 | 22,0 | 34,00 | 4147 |
| 1.3/4-5 | 44,450 | 5 | 5,080 | 160 | 58 | - | 36,0 | 29,0 | 39,50 | 4145 |
| 2-4.1/2 | 50,800 | 4 1/2 | 5,645 | 180 | 70 | - | 40,0 | 32,0 | 45,00 | 4155 |
Пример заказа: A1-230001-4104 — KPL/3 No 4-40 UNC 2B DIN-352 HSS. Доступный со склада: по запросу.
