Каталог FANAR цельные твердосплавные фрезы
Общий каталог FANAR 2021

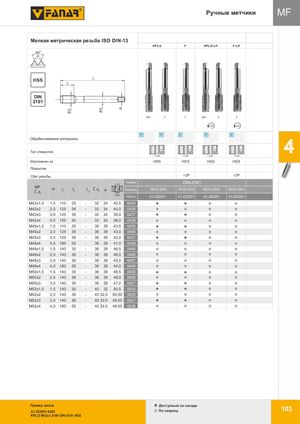

Ручные метчики. Мелкая метрическая резьба ISO, DIN-13
Комплект KPL-800: KPL/2, F, KPL/2-LH, F-LH, норма DIN-2181.
| Резьба MF | P | l1 | l2 | l3 | Ćd2 | Ćd1 | a | № (INDEX) |
|---|---|---|---|---|---|---|---|---|
| M42x1,5 | 1,5 | 110 | 25 | - | 32 | 24 | 40,5 | 0425 |
| M42x2 | 2,0 | 125 | 36 | - | 32 | 24 | 40,0 | 0426 |
| M42x3 | 3,0 | 125 | 36 | - | 32 | 24 | 39,0 | 0427 |
| M42x4 | 4,0 | 150 | 50 | - | 32 | 24 | 38,0 | 0428 |
| M45x1,5 | 1,5 | 110 | 25 | - | 36 | 29 | 43,5 | 0455 |
| M45x2 | 2,0 | 125 | 36 | - | 36 | 29 | 43,0 | 0456 |
| M45x3 | 3,0 | 125 | 36 | - | 36 | 29 | 42,0 | 0457 |
| M45x4 | 4,0 | 160 | 50 | - | 36 | 29 | 41,0 | 0458 |
| M48x1,5 | 1,5 | 140 | 30 | - | 36 | 29 | 46,5 | 0485 |
| M48x2 | 2,0 | 140 | 36 | - | 36 | 29 | 46,0 | 0486 |
| M48x3 | 3,0 | 140 | 36 | - | 36 | 29 | 45,0 | 0487 |
| M48x4 | 4,0 | 180 | 55 | - | 36 | 29 | 44,0 | 0488 |
| M50x1,5 | 1,5 | 140 | 30 | - | 36 | 29 | 48,5 | 0505 |
| M50x2 | 2,0 | 140 | 36 | - | 36 | 29 | 48,0 | 0506 |
| M50x3 | 3,0 | 140 | 36 | - | 36 | 29 | 47,0 | 0507 |
| M52x1,5 | 1,5 | 140 | 30 | - | 40 | 32 | 50,5 | 0525 |
| M52x2 | 2,0 | 140 | 36 | - | 40 | 32,0 | 50,00 | 0526 |
| M52x3 | 3,0 | 140 | 36 | - | 40 | 32,0 | 49,00 | 0527 |
| M52x4 | 4,0 | 180 | 55 | - | 40 | 32,0 | 48,00 | 0528 |
Пример заказа: A1-222001-0425 — KPL/2 M42x1,5-6H DIN-2181 HSS. Доступный со склада: по запросу.
