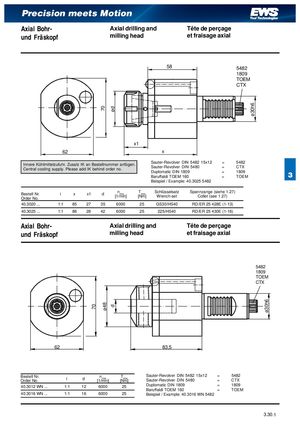

Precision meets Motion Axial Bohr- Axial drilling and Tête de perçage und Fräskopf milling head et fraisage axial 58 5482 1809 TOEM CTX ø30h6 70 ød x1 62 x Sauter-Revolver DIN 5482 15x12 = 5482 Innere Kühlmittelzufuhr. Zusatz IK an Bestellnummer anfügen. Sauter-Revolver DIN 5480 = CTX Central cooling supply. Please add IK behind order no. Duplomatic DIN 1809 = 1809 Baruffaldi TOEM 160 = TOEM 3 Beispiel / Example: 40.3025 5482 nmax Tmax Schlüsselsatz Spannzange (siehe 1.27) Bestell Nr. i x x1 d [1/min] [Nm] Wrench-set Collet (see 1.27) Order No. 40.3020 ... 1:1 85 27 35 6000 25 GS30/HS40 RD/ER 25 428E (1-13) 40.3025 ... 1:1 86 28 42 6000 25 225/HS40 RD/ER 25 430E (1-16) Axial Bohr- Axial drilling and Tête de perçage und Fräskopf milling head et fraisage axial 5482 1809 TOEM CTX ø30h6 ø48 70 d 62 83,5 Bestell Nr. nmax Tmax Sauter-Revolver DIN 5482 15x12 = 5482 i d Sauter-Revolver DIN 5480 = CTX Order No. [1/min] [Nm] 40.3012 WN ... 1:1 12 6000 25 Duplomatic DIN 1809 = 1809 Baruffaldi TOEM 160 = TOEM 40.3016 WN ... 1:1 16 6000 25 Beispiel / Example: 40.3016 WN 5482 3.30.1
