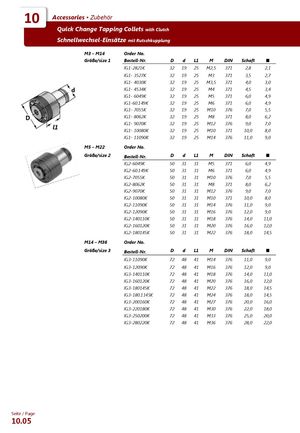

Быстросменные резьбонарезные патроны с предохранительной муфтой
| M3 – M14 ▪ Размер 1 | |||||||
|---|---|---|---|---|---|---|---|
| Номер заказа | D | d | L1 | M | DIN | Хвостовик | ■ |
| IG1-2821K | 32 | 19 | 25 | M2,5 | 371 | 2,8 | 2,1 |
| IG1-3527K | 32 | 19 | 25 | M3 | 371 | 3,5 | 2,7 |
| IG1-4030K | 32 | 19 | 25 | M3,5 | 371 | 4,0 | 3,0 |
| IG1-4534K | 32 | 19 | 25 | M4 | 371 | 4,5 | 3,4 |
| IG1-6049K | 32 | 19 | 25 | M5 | 371 | 6,0 | 4,9 |
| IG1-60.149K | 32 | 19 | 25 | M6 | 371 | 6,0 | 4,9 |
| IG1-7055K | 32 | 19 | 25 | M10 | 376 | 7,0 | 5,5 |
| IG1-8062K | 32 | 19 | 25 | M8 | 371 | 8,0 | 6,2 |
| IG1-9070K | 32 | 19 | 25 | M12 | 376 | 9,0 | 7,0 |
| IG1-10080K | 32 | 19 | 25 | M10 | 371 | 10,0 | 8,0 |
| IG1-11090K | 32 | 19 | 25 | M14 | 376 | 11,0 | 9,0 |
| M5 – M22 ▪ Размер 2 | |||||||
|---|---|---|---|---|---|---|---|
| Номер заказа | D | d | L1 | M | DIN | Хвостовик | ■ |
| IG2-6049K | 50 | 31 | 31 | M5 | 371 | 6,0 | 4,9 |
| IG2-60.149K | 50 | 31 | 31 | M6 | 371 | 6,0 | 4,9 |
| IG2-7055K | 50 | 31 | 31 | M10 | 376 | 7,0 | 5,5 |
| IG2-8062K | 50 | 31 | 31 | M8 | 371 | 8,0 | 6,2 |
| IG2-9070K | 50 | 31 | 31 | M12 | 376 | 9,0 | 7,0 |
| IG2-10080K | 50 | 31 | 31 | M10 | 371 | 10,0 | 8,0 |
| IG2-11090K | 50 | 31 | 31 | M14 | 376 | 11,0 | 9,0 |
| IG2-12090K | 50 | 31 | 31 | M16 | 376 | 12,0 | 9,0 |
| IG2-140110K | 50 | 31 | 31 | M18 | 376 | 14,0 | 11,0 |
| IG2-160120K | 50 | 31 | 31 | M20 | 376 | 16,0 | 12,0 |
| IG2-180145K | 50 | 31 | 31 | M22 | 376 | 18,0 | 14,5 |
| M14 – M36 ▪ Размер 3 | |||||||
|---|---|---|---|---|---|---|---|
| Номер заказа | D | d | L1 | M | DIN | Хвостовик | ■ |
| IG3-11090K | 72 | 48 | 41 | M14 | 376 | 11,0 | 9,0 |
| IG3-12090K | 72 | 48 | 41 | M16 | 376 | 12,0 | 9,0 |
| IG3-140110K | 72 | 48 | 41 | M18 | 376 | 14,0 | 11,0 |
| IG3-160120K | 72 | 48 | 41 | M20 | 376 | 16,0 | 12,0 |
| IG3-180145K | 72 | 48 | 41 | M22 | 376 | 18,0 | 14,5 |
| IG3-180.1145K | 72 | 48 | 41 | M24 | 376 | 18,0 | 14,5 |
| IG3-200160K | 72 | 48 | 41 | M27 | 376 | 20,0 | 16,0 |
| IG3-220180K | 72 | 48 | 41 | M30 | 376 | 22,0 | 18,0 |
| IG3-250200K | 72 | 48 | 41 | M33 | 376 | 25,0 | 20,0 |
| IG3-280220K | 72 | 48 | 41 | M36 | 376 | 28,0 | 22,0 |
