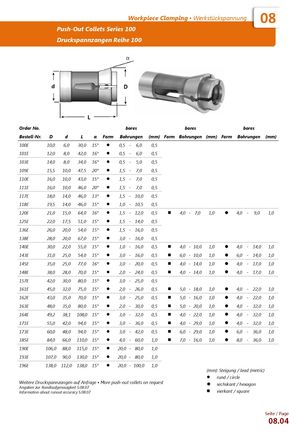

Workpiece Clamping ▪ Werkstückspannung 08
Толкающие цанги серии 100
| Order No / Bestell-Nr. | D | d | L | α | Форма | Отверстия (мм) | (мм) | Форма | Отверстия (мм) | (мм) | Форма | Отверстия (мм) | (мм) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 100E | 10,0 | 6,0 | 30,0 | 15° | круг | 0,5 - 6,0 | 0,5 | ||||||
| 101E | 12,0 | 8,0 | 42,0 | 16° | круг | 0,5 - 6,0 | 0,5 | ||||||
| 103E | 14,0 | 8,0 | 34,0 | 16° | круг | 0,5 - 5,0 | 0,5 | ||||||
| 109E | 15,5 | 10,0 | 47,5 | 20° | круг | 1,5 - 7,0 | 0,5 | ||||||
| 110E | 16,0 | 10,0 | 43,0 | 15° | круг | 1,5 - 7,0 | 0,5 | ||||||
| 111E | 16,0 | 10,0 | 46,0 | 20° | круг | 1,5 - 7,0 | 0,5 | ||||||
| 117E | 18,0 | 14,0 | 46,0 | 13° | круг | 1,5 - 10,0 | 0,5 | ||||||
| 118E | 19,5 | 14,0 | 46,0 | 15° | круг | 1,0 - 10,5 | 0,5 | ||||||
| 120E | 21,0 | 15,0 | 64,0 | 16° | круг | 1,5 - 12,0 | 0,5 | квадрат | 4,0 - 7,0 | 1,0 | 4,0 - 9,0 | 1,0 | |
| 125E | 22,0 | 17,5 | 51,0 | 15° | круг | 1,5 - 14,0 | 0,5 | ||||||
| 136E | 26,0 | 20,0 | 54,0 | 15° | круг | 1,5 - 16,0 | 0,5 | ||||||
| 138E | 28,0 | 20,0 | 67,0 | 15° | круг | 3,0 - 16,0 | 0,5 | ||||||
| 140E | 30,0 | 22,0 | 55,0 | 15° | круг | 1,0 - 16,0 | 0,5 | квадрат | 4,0 - 10,0 | 1,0 | 4,0 - 14,0 | 1,0 | |
| 143E | 31,0 | 25,0 | 54,0 | 15° | круг | 3,0 - 16,0 | 0,5 | квадрат | 6,0 - 10,0 | 1,0 | 6,0 - 14,0 | 1,0 | |
| 145E | 35,0 | 25,0 | 77,0 | 16° | круг | 3,0 - 20,0 | 0,5 | квадрат | 4,0 - 14,0 | 1,0 | 4,0 - 17,0 | 1,0 | |
| 148E | 38,0 | 28,0 | 70,0 | 15° | круг | 2,0 - 24,0 | 0,5 | квадрат | 4,0 - 14,0 | 1,0 | 4,0 - 17,0 | 1,0 | |
| 157E | 42,0 | 30,0 | 80,0 | 15° | круг | 3,0 - 25,0 | 0,5 | ||||||
| 161E | 45,0 | 32,0 | 75,0 | 15° | круг | 2,0 - 26,0 | 0,5 | квадрат | 5,0 - 18,0 | 1,0 | 4,0 - 22,0 | 1,0 | |
| 162E | 43,0 | 35,0 | 70,0 | 15° | круг | 3,0 - 25,0 | 0,5 | квадрат | 5,0 - 16,0 | 1,0 | 4,0 - 22,0 | 1,0 | |
| 163E | 48,0 | 35,0 | 80,0 | 15° | круг | 2,0 - 30,0 | 0,5 | квадрат | 5,0 - 20,0 | 1,0 | 4,0 - 32,0 | 1,0 | |
| 164E | 49,2 | 38,1 | 108,0 | 15° | круг | 3,0 - 32,0 | 0,5 | квадрат | 4,0 - 22,0 | 1,0 | 4,0 - 32,0 | 1,0 | |
| 171E | 55,0 | 42,0 | 94,0 | 15° | круг | 3,0 - 36,0 | 0,5 | квадрат | 4,0 - 29,0 | 1,0 | 4,0 - 32,0 | 1,0 | |
| 173E | 60,0 | 48,0 | 94,0 | 15° | круг | 3,0 - 42,0 | 0,5 | квадрат | 6,0 - 29,0 | 1,0 | 6,0 - 36,0 | 1,0 | |
| 185E | 84,0 | 66,0 | 110,0 | 15° | круг | 4,0 - 60,0 | 1,0 | квадрат | 7,0 - 16,0 | 1,0 | 8,0 - 36,0 | 1,0 | |
| 190E | 106,0 | 88,0 | 115,0 | 15° | круг | 20,0 - 80,0 | 1,0 | ||||||
| 193E | 107,0 | 90,0 | 130,0 | 15° | круг | 20,0 - 80,0 | 1,0 | ||||||
| 196E | 138,0 | 112,0 | 138,0 | 15° | круг | 20,0 - 100,0 | 1,0 |
(мм): шаг резьбы (метрическая). Форма: круглая или шестигранная (l), квадратная (n).
Другие толкающие цанги по запросу. Сведения о точности биения см. на с. 08.07.
