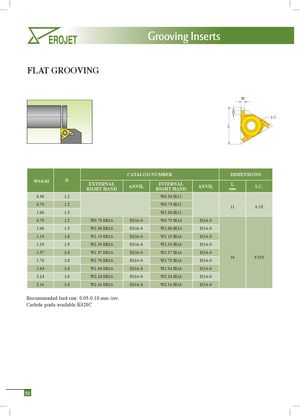

Каталог Erojet резьбонарезные пластины и державки - страница 54
Навигация
Каталог Erojet монолитные резбофрезы
Grooving Inserts Grooving Inserts
FLAT GROOVING
D L
W
I.C.
| CATALOG | NUMBER | DIME | NSIONS | ||||
| W+-0.02 | D | EXTERNAL RIGHT HAND | ANVIL | INTERNAL RIGHT HAND | ANVIL | L mm | I.C. |
| 0.50 | 1.2 | W0.50 IR11 | |||||
| 0.79 | 1.2 | W0.79 IR11 | 11 | 6.35 | |||
| 1.00 | 1.5 | W1.00 IR11 | |||||
| 0.79 | 1.2 | W0.79 ER16 | ES16-0 | W0.79 IR16 | IS16-0 | ||
| 1.00 | 1.5 | W1.00 ER16 | ES16-0 | W1.00 IR16 | IS16-0 | ||
| 1.19 | 1.8 | W1.19 ER16 | ES16-0 | W1.19 IR16 | IS16-0 | ||
| 1.39 | 1.9 | W1.39 ER16 | ES16-0 | W1.39 IR16 | IS16-0 | ||
| 1.57 | 2.0 | W1.57 ER16 | ES16-0 | W1.57 IR16 | IS16-0 | ||
| 1.70 | 2.0 | W1.70 ER16 | ES16-0 | W1.70 IR16 | IS16-0 | 16 | 9.525 |
| 1.94 | 2.0 | W1.94 ER16 | ES16-0 | W1.94 IR16 | IS16-0 | ||
| 2.24 | 2.0 | W2.24 ER16 | ES16-0 | W2.24 IR16 | IS16-0 | ||
| 2.36 | 2.0 | W2.36 ER16 | ES16-0 | W2.36 IR16 | IS16-0 |
Recommended feed rate: 0.05-0.10 mm /rev.
