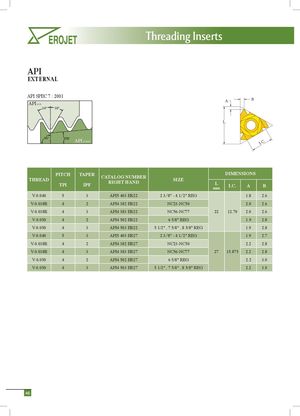

Каталог Erojet резьбонарезные пластины и державки - страница 48
Навигация
Каталог Erojet монолитные резбофрезы
API
EXTERNAL
API SPEC 7 : 2001
API
NUT 30° 30°
90° IPF
API
SCREW
A B
L
I.C.
| THREAD | PITCH TPI | TAPER IPF | CATALOG NUMBER RIGHT HAND | SIZE | L mm | DIMEN I.C. | SIONS A | B |
| V-0.040 | 5 | 3 | API5 403 ER22 | 2 3∕8" - 4 1∕2" REG | 1.8 | 2.6 | ||
| V-0.038R | 4 | 2 | API4 382 ER22 | NC23-NC50 | 2.0 | 2.6 | ||
| V-0.038R | 4 | 3 | API4 383 ER22 | NC56-NC77 | 22 | 12.70 | 2.0 | 2.6 |
| V-0.050 | 4 | 2 | API4 502 ER22 | 6 5/8" REG | 1.9 | 2.8 | ||
| V-0.050 | 4 | 3 | API4 503 ER22 | 5 1/2" , 7 5/8" , 8 5/8" REG | 1.9 | 2.8 | ||
| V-0.040 | 5 | 3 | API5 403 ER27 | 2 3∕8" - 4 1∕2" REG | 1.9 | 2.7 | ||
| V-0.038R | 4 | 2 | API4 382 ER27 | NC23-NC50 | 2.2 | 2.8 | ||
| V-0.038R | 4 | 3 | API4 383 ER27 | NC56-NC77 | 27 | 15.875 | 2.2 | 2.8 |
| V-0.050 | 4 | 2 | API4 502 ER27 | 6 5/8" REG | 2.2 | 3.0 | ||
| V-0.050 | 4 | 3 | API4 503 ER27 | 5 1/2" , 7 5/8" , 8 5/8" REG | 2.2 | 3.0 |
