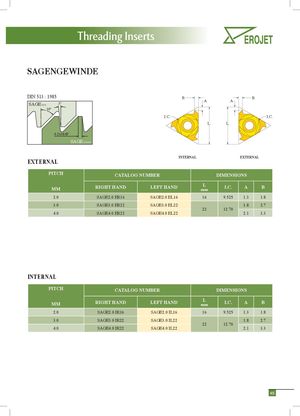

Threading Inserts SAGENGEWINDE DIN 513 : 1985 B B A A SAGE NUT 3° 30° I.C. I.C. L L 0.26384P SAGE SCREW INTERNAL EXTERNAL EXTERNAL PITCH CATALOG NUMBER DIMENSIONS RIGHT HAND LEFT HAND L I.C. A B MM mm 2.0 SAGE2.0 ER16 SAGE2.0 EL16 16 9.525 1.3 1.8 3.0 SAGE3.0 ER22 SAGE3.0 EL22 1.8 2.7 22 12.70 4.0 SAGE4.0 ER22 SAGE4.0 EL22 2.1 3.3 INTERNAL PITCH CATALOG NUMBER DIMENSIONS RIGHT HAND LEFT HAND L I.C. A B MM mm 2.0 SAGE2.0 IR16 SAGE2.0 IL16 16 9.525 1.3 1.8 3.0 SAGE3.0 IR22 SAGE3.0 IL22 1.8 2.7 22 12.70 4.0 SAGE4.0 IR22 SAGE4.0 IL22 2.1 3.3 45
