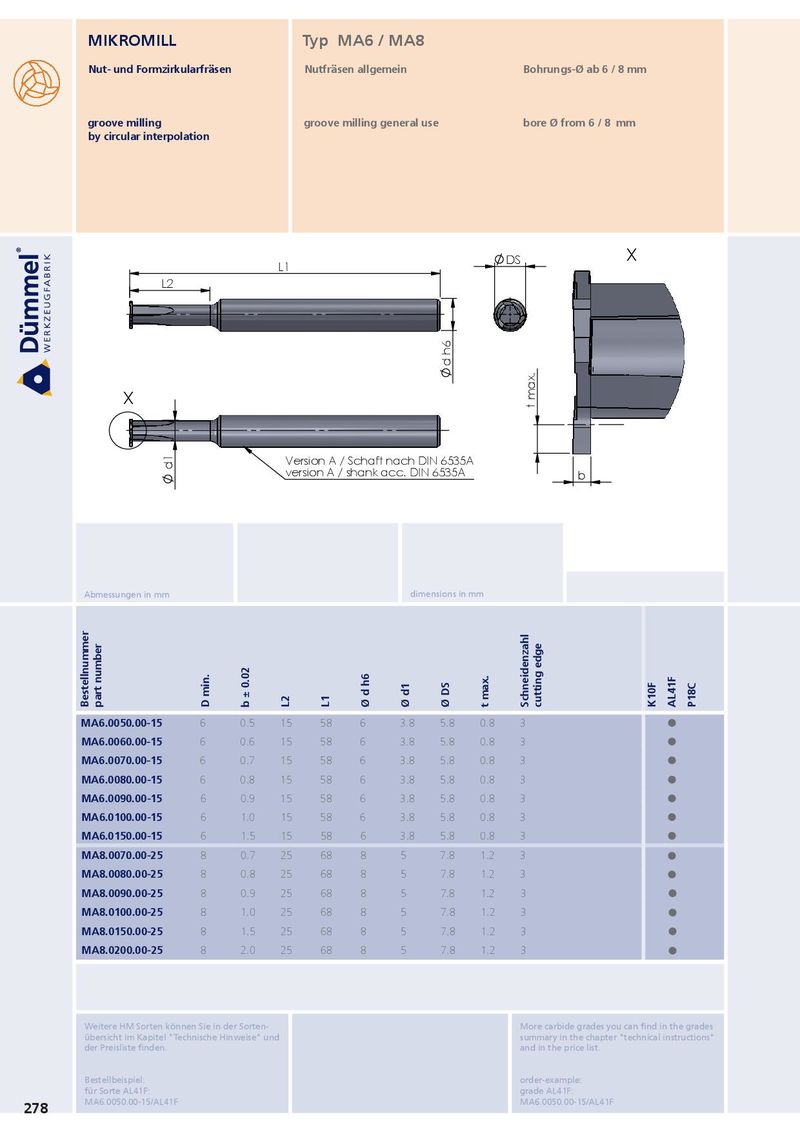

| MIKROMILL Nut- und Formzirkularfräse | n | Typ Nutfräs | MA6 / MA8 en allgemein | Bohrun | gs-Ø ab 6 / 8 m | m | |
| groove milling by circular interpolation | groove | milling general use | bore Ø | from 6 / 8 mm | |||
| L2 d1 X | L1 V ve | ersion A rsion A/ | d h6 / Schaft nach DIN 6535A shank acc. DIN 6535A | DS t max. | b X | ||
| Abmessungen in mm Bestellnummer part number D min. | b ± 0.02 | L2 | L1 | dimensions in mm Ø d h6 Ø d1 Ø DS t max. | Schneidenzahl cutting edge | K10F AL41F P18C | |
| MA6.0050.00-15 6 MA6.0060.00-15 6 | 0.5 0.6 | 15 15 | 58 58 | 6 3.8 5.8 0.8 6 3.8 5.8 0.8 | 3 3 | | |
| MA6.0070.00-15 6 | 0.7 | 15 | 58 | 6 3.8 5.8 0.8 | 3 | | |
| MA6.0080.00-15 6 | 0.8 | 15 | 58 | 6 3.8 5.8 0.8 | 3 | | |
| MA6.0090.00-15 6 | 0.9 | 15 | 58 | 6 3.8 5.8 0.8 | 3 | | |
| MA6.0100.00-15 6 | 1.0 | 15 | 58 | 6 3.8 5.8 0.8 | 3 | | |
| MA6.0150.00-15 6 | 1.5 | 15 | 58 | 6 3.8 5.8 0.8 | 3 | | |
| MA8.0070.00-25 8 MA8.0080.00-25 8 | 0.7 0.8 | 25 25 | 68 68 | 8 5 7.8 1.2 8 5 7.8 1.2 | 3 3 | | |
| MA8.0090.00-25 8 | 0.9 | 25 | 68 | 8 5 7.8 1.2 | 3 | | |
| MA8.0100.00-25 8 | 1.0 | 25 | 68 | 8 5 7.8 1.2 | 3 | | |
| MA8.0150.00-25 8 MA8.0200.00-25 8 | 1.5 2.0 | 25 25 | 68 68 | 8 5 7.8 1.2 8 5 7.8 1.2 | 3 3 | |
278 MA6.0050.00-15/AL41F MA6.0050.00-15/AL41F
