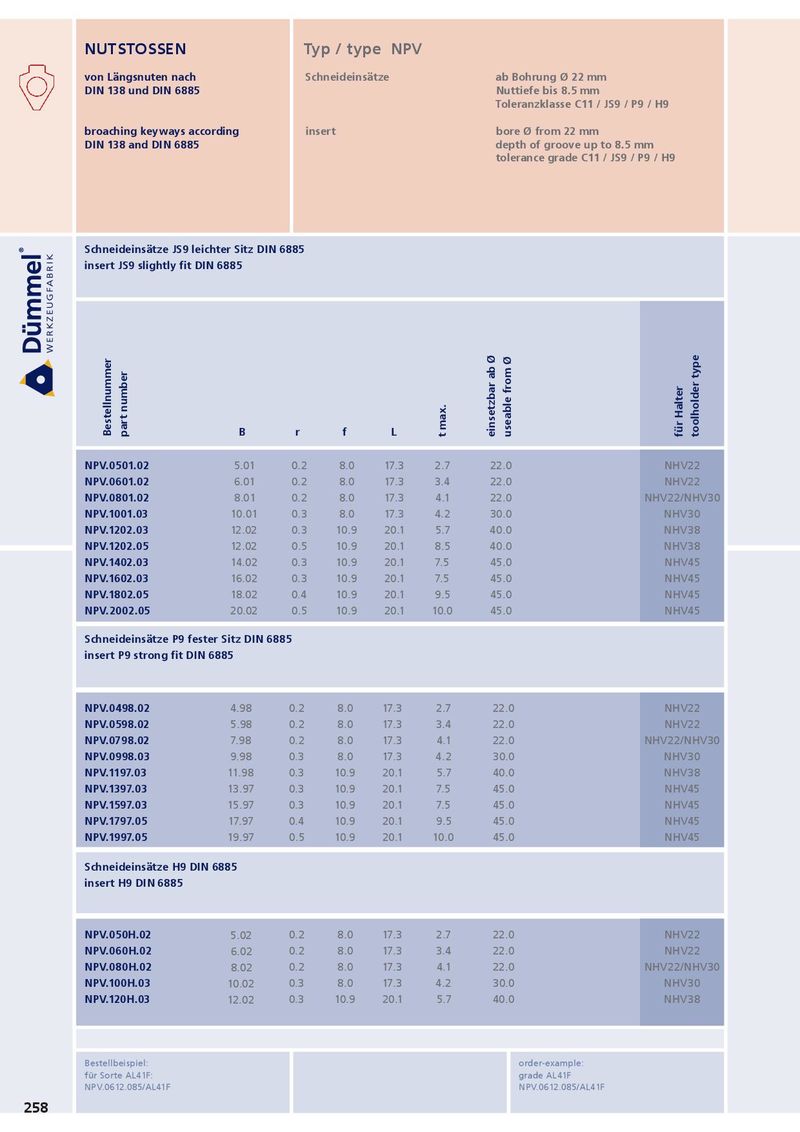

NUTSTOSSEN Typ / type NPV von Längsnuten nach Schneideinsätze ab Bohrung Ø 22 mm DIN 138 und DIN 6885 Nuttiefe bis 8.5 mm Toleranzklasse C11 / JS9 / P9 / H9 broaching keyways according insert bore Ø from 22 mm DIN 138 and DIN 6885 depth of groove up to 8.5 mm tolerance grade C11 / JS9 / P9 / H9 Schneideinsätze JS9 leichter Sitz DIN 6885 insert JS9 slightly fit DIN 6885 Bestellnummer part number B r f L t max. einsetzbar ab Ø useable from Ø für Halter toolholder type NPV.0501.02 5.01 0.2 8.0 17.3 2.7 22.0 NHV22 NPV.0601.02 6.01 0.2 8.0 17.3 3.4 22.0 NHV22 NPV.0801.02 8.01 0.2 8.0 17.3 4.1 22.0 NHV22/NHV30 NPV.1001.03 10.01 0.3 8.0 17.3 4.2 30.0 NHV30 NPV.1202.03 12.02 0.3 10.9 20.1 5.7 40.0 NHV38 NPV.1202.05 12.02 0.5 10.9 20.1 8.5 40.0 NHV38 NPV.1402.03 14.02 0.3 10.9 20.1 7.5 45.0 NHV45 NPV.1602.03 16.02 0.3 10.9 20.1 7.5 45.0 NHV45 NPV.1802.05 18.02 0.4 10.9 20.1 9.5 45.0 NHV45 NPV.2002.05 20.02 0.5 10.9 20.1 10.0 45.0 NHV45 Schneideinsätze P9 fester Sitz DIN 6885 insert P9 strong fit DIN 6885 NPV.0498.02 4.98 0.2 8.0 17.3 2.7 22.0 NHV22 NPV.0598.02 5.98 0.2 8.0 17.3 3.4 22.0 NHV22 NPV.0798.02 7.98 0.2 8.0 17.3 4.1 22.0 NHV22/NHV30 NPV.0998.03 9.98 0.3 8.0 17.3 4.2 30.0 NHV30 NPV.1197.03 11.98 0.3 10.9 20.1 5.7 40.0 NHV38 NPV.1397.03 13.97 0.3 10.9 20.1 7.5 45.0 NHV45 NPV.1597.03 15.97 0.3 10.9 20.1 7.5 45.0 NHV45 NPV.1797.05 17.97 0.4 10.9 20.1 9.5 45.0 NHV45 NPV.1997.05 19.97 0.5 10.9 20.1 10.0 45.0 NHV45 Schneideinsätze H9 DIN 6885 insert H9 DIN 6885 NPV.050H.02 5.02 0.2 8.0 17.3 2.7 22.0 NHV22 NPV.060H.02 6.02 0.2 8.0 17.3 3.4 22.0 NHV22 NPV.080H.02 8.02 0.2 8.0 17.3 4.1 22.0 NHV22/NHV30 NPV.100H.03 10.02 0.3 8.0 17.3 4.2 30.0 NHV30 NPV.120H.03 12.02 0.3 10.9 20.1 5.7 40.0 NHV38 Bestellbeispiel: order-example: für Sorte AL41F: grade AL41F NPV.0612.085/AL41F NPV.0612.085/AL41F 258
