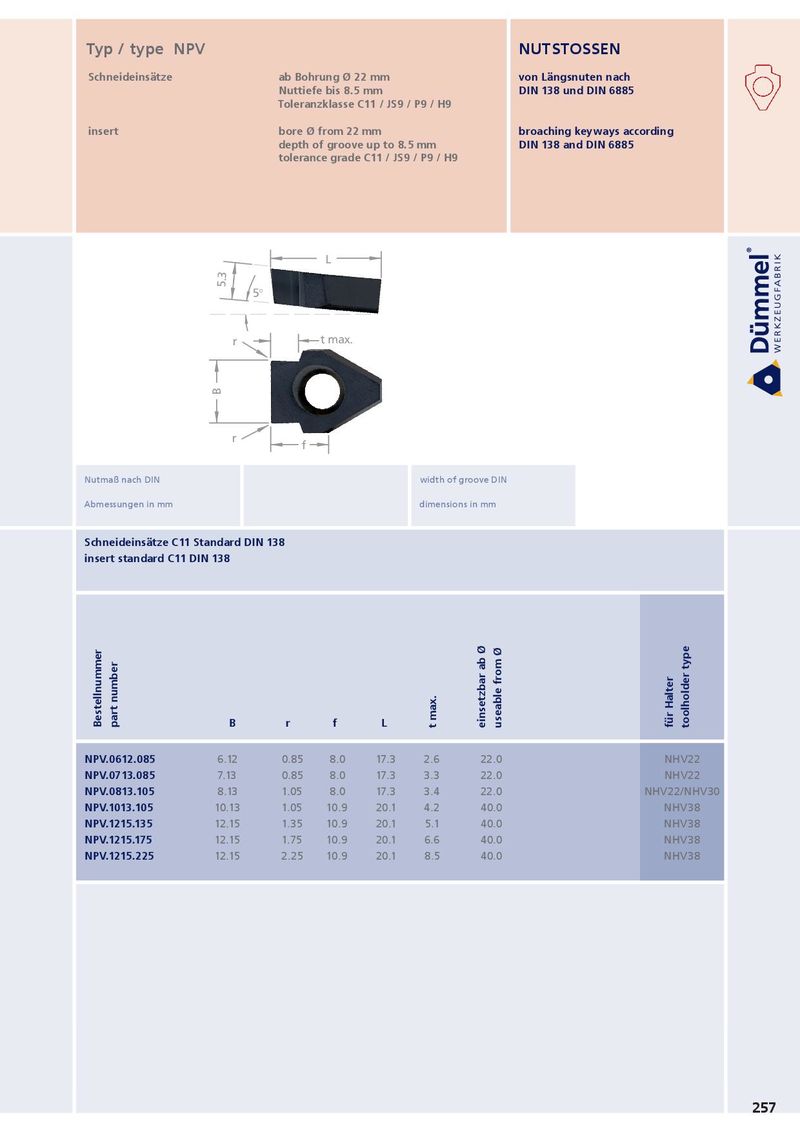

Typ / type NPV5° NUTSTOSSEN
| 5° | r r | |||
| Schneideinsätze | ab Bohrung Ø 22 mmr | r | von Längsnuten nach | |
| L2 | Nuttiefe bis 8.5 mm | DIN 138 und DIN 6885 | ||
| Toleranzklasse C11 / JS9 / P9 / H9 | ||||
| L2 | ||||
| insert | bore Ø from 22 mm | broaching keyways according |
depth of groove up to 8.5 mm DIN 138 and DIN 6885 tolerance grade C11 / JS9 / P9 / H9
L
| 5 5.3 | ° | L | ||||
| B r r | f | t max. | ||||
| Nutmaß nach DIN Abmessungen in mm | width of dimensio | groove DIN ns in mm | ||||
| Schneideinsätze C1 insert standard C11 | 1 Standard DI DIN 138 | N 138 | ||||
| Bestellnummer part number | B | r | f L | t max. | einsetzbar ab Ø useable from Ø | für Halter toolholder type |
| NPV.0612.085 | 6.12 | 0.85 | 8.0 17.3 | 2.6 | 22.0 | NHV22 |
| NPV.0713.085 | 7.13 | 0.85 | 8.0 17.3 | 3.3 | 22.0 | NHV22 |
| NPV.0813.105 | 8.13 | 1.05 | 8.0 17.3 | 3.4 | 22.0 | NHV22/NHV30 |
| NPV.1013.105 | 10.13 | 1.05 | 10.9 20.1 | 4.2 | 40.0 | NHV38 |
| NPV.1215.135 | 12.15 | 1.35 | 10.9 20.1 | 5.1 | 40.0 | NHV38 |
| NPV.1215.175 | 12.15 | 1.75 | 10.9 20.1 | 6.6 | 40.0 | NHV38 |
| NPV.1215.225 | 12.15 | 2.25 | 10.9 20.1 | 8.5 | 40.0 | NHV38 |
d1
