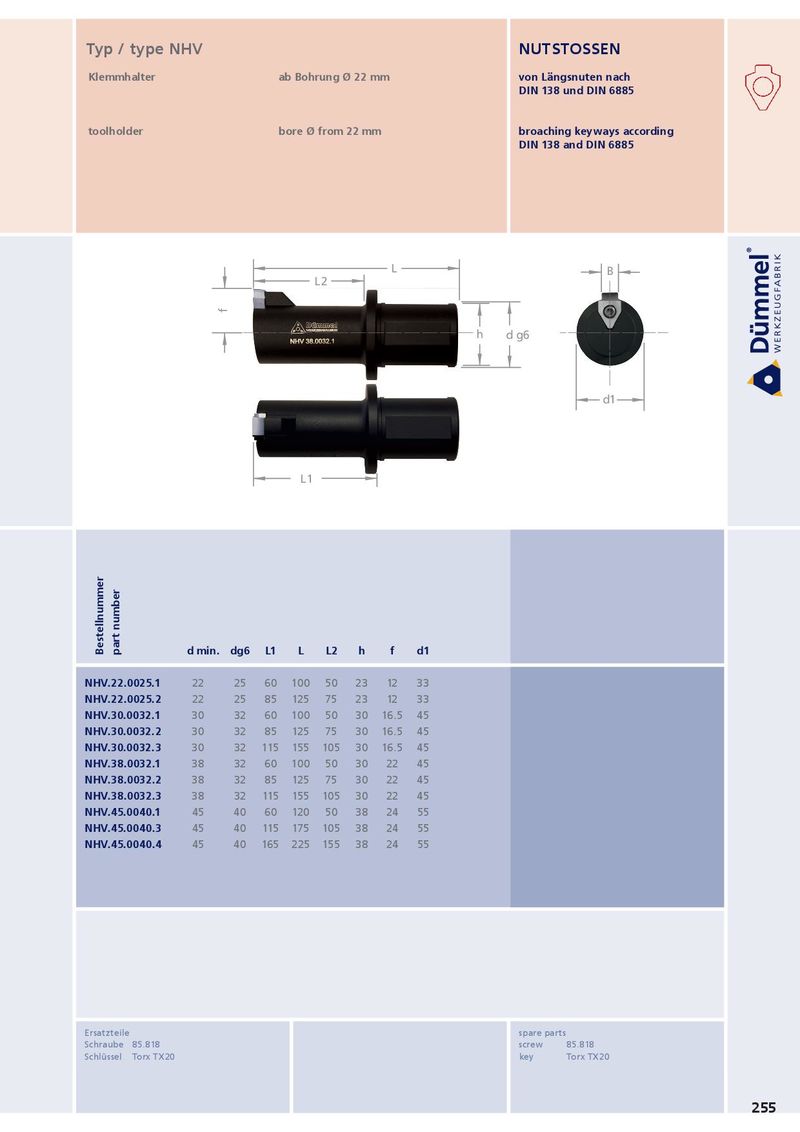

Typ / type NHV NUTSTOSSEN
5°5° DIN 138 und DIN 6885 d2d2
toolholder bore Ø from 22 mm broaching keyways according
DIN 138 and DIN 6885
LL BB L2L2
hh d g6d g6
d1d1
L1L1
| B p | d min. | dg6 | L1 | L | L2 | h | f | d1 |
| NHV.22.0025.1 | 22 | 25 | 60 | 100 | 50 | 23 | 12 | 33 |
| NHV.22.0025.2 | 22 | 25 | 85 | 125 | 75 | 23 | 12 | 33 |
| NHV.30.0032.1 | 30 | 32 | 60 | 100 | 50 | 30 | 16.5 | 45 |
| NHV.30.0032.2 | 30 | 32 | 85 | 125 | 75 | 30 | 16.5 | 45 |
| NHV.30.0032.3 | 30 | 32 | 115 | 155 | 105 | 30 | 16.5 | 45 |
| NHV.38.0032.1 | 38 | 32 | 60 | 100 | 50 | 30 | 22 | 45 |
| NHV.38.0032.2 | 38 | 32 | 85 | 125 | 75 | 30 | 22 | 45 |
| NHV.38.0032.3 | 38 | 32 | 115 | 155 | 105 | 30 | 22 | 45 |
| NHV.45.0040.1 | 45 | 40 | 60 | 120 | 50 | 38 | 24 | 55 |
| NHV.45.0040.3 | 45 | 40 | 115 | 175 | 105 | 38 | 24 | 55 |
| NHV.45.0040.4 | 45 | 40 | 165 | 225 | 155 | 38 | 24 | 55 |
Schraube 85.818 screw 85.818
Schlüssel Torx TX20 key Torx TX20
