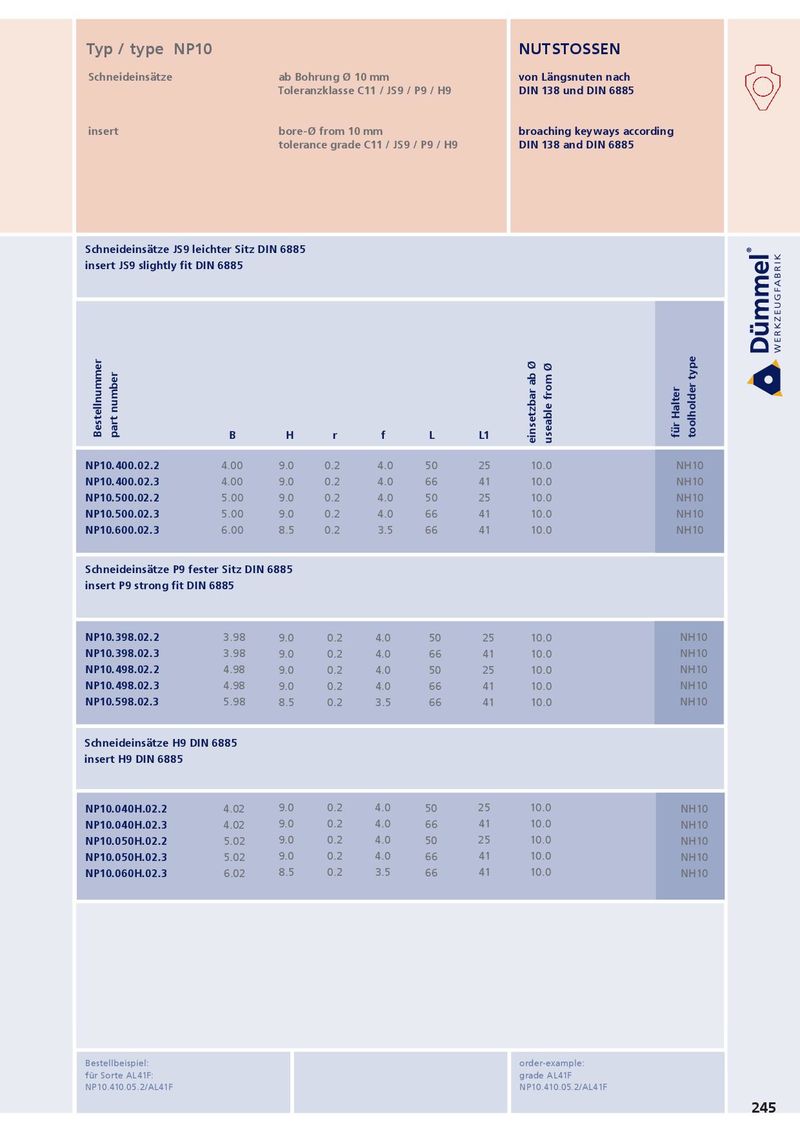

Typ / type NP10 NUTSTOSSEN
Toleranzklasse C11 / JS9 / P9 / H9 DIN 138 und DIN 6885
insert bore-Ø from 10 mm broaching keyways according
tolerance grade C11 / JS9 / P9 / H9 DIN 138 and DIN 6885
Schneideinsätze JS9 leichter Sitz DIN 6885 insert JS9 slightly fit DIN 6885
| Bestellnummer part number | B | H | r | f | L | L1 | einsetzbar ab Ø useable from Ø | für Halter toolholder type |
| NP10.400.02.2 | 4.00 | 9.0 | 0.2 | 4.0 | 50 | 25 | 10.0 | NH10 |
| NP10.400.02.3 | 4.00 | 9.0 | 0.2 | 4.0 | 66 | 41 | 10.0 | NH10 |
| NP10.500.02.2 | 5.00 | 9.0 | 0.2 | 4.0 | 50 | 25 | 10.0 | NH10 |
| NP10.500.02.3 | 5.00 | 9.0 | 0.2 | 4.0 | 66 | 41 | 10.0 | NH10 |
| NP10.600.02.3 | 6.00 | 8.5 | 0.2 | 3.5 | 66 | 41 | 10.0 | NH10 |
Schneideinsätze P9 fester Sitz DIN 6885 insert P9 strong fit DIN 6885
| NP10.398.02.2 | 3.98 | 9.0 | 0.2 | 4.0 | 50 | 25 | 10.0 NH10 |
| NP10.398.02.3 | 3.98 | 9.0 | 0.2 | 4.0 | 66 | 41 | 10.0 NH10 |
| NP10.498.02.2 | 4.98 | 9.0 | 0.2 | 4.0 | 50 | 25 | 10.0 NH10 |
| NP10.498.02.3 | 4.98 | 9.0 | 0.2 | 4.0 | 66 | 41 | 10.0 NH10 |
| NP10.598.02.3 | 5.98 | 8.5 | 0.2 | 3.5 | 66 | 41 | 10.0 NH10 |
Schneideinsätze H9 DIN 6885 insert H9 DIN 6885
| NP10.040H.02.2 | 4.02 | 9.0 | 0.2 | 4.0 | 50 | 25 | 10.0 | NH10 |
| NP10.040H.02.3 | 4.02 | 9.0 | 0.2 | 4.0 | 66 | 41 | 10.0 | NH10 |
| NP10.050H.02.2 | 5.02 | 9.0 | 0.2 | 4.0 | 50 | 25 | 10.0 | NH10 |
| NP10.050H.02.3 | 5.02 | 9.0 | 0.2 | 4.0 | 66 | 41 | 10.0 | NH10 |
| NP10.060H.02.3 | 6.02 | 8.5 | 0.2 | 3.5 | 66 | 41 | 10.0 | NH10 |
NP10.410.05.2/AL41F NP10.410.05.2/AL41F
