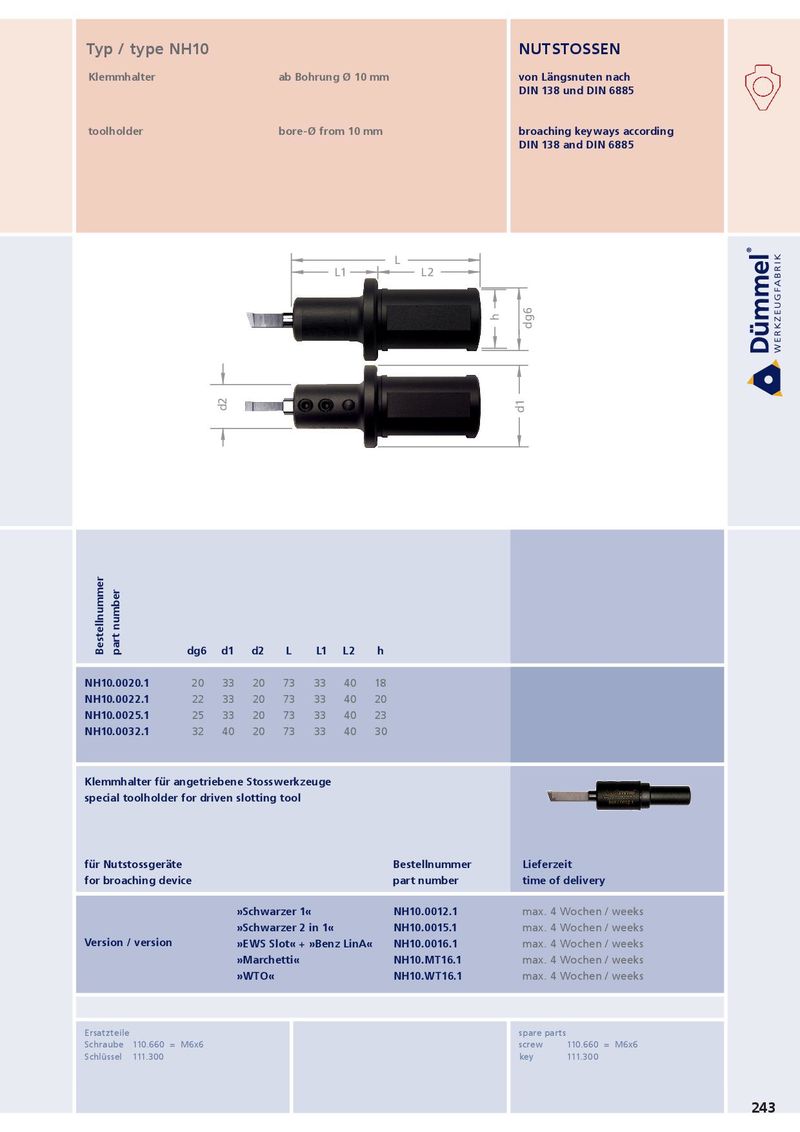

Typ / type NH10 NUTSTOSSEN
5 ° 5° t max. t max.
toolholder bore-Ø from 10 mm broaching keyways according
b b DIN 138 and DIN 6885
| L1 | L | L2 h | dg6 | ||||||
| d2 | d1 | ||||||||
| Bestellnummer part number | dg6 | d1 | d2 | L | L1 | L2 | h | ||
| NH10.0020.1 | 20 | 33 | 20 | 73 | 33 | 40 | 18 | ||
| NH10.0022.1 | 22 | 33 | 20 | 73 | 33 | 40 | 20 | ||
| NH10.0025.1 | 25 | 33 | 20 | 73 | 33 | 40 | 23 | ||
| NH10.0032.1 | 32 | 40 | 20 | 73 | 33 | 40 | 30 |
Klemmhalter für angetriebene Stosswerkzeuge special toolholder for driven slotting tool
| für Nutstossgeräte | Bestellnummer | Lieferzeit | |
| for broaching device | part number | time of delivery | |
| »Schwarzer 1« | NH10.0012.1 | max. 4 Wochen / weeks | |
| »Schwarzer 2 in 1« | NH10.0015.1 | max. 4 Wochen / weeks | |
| Version / version | »EWS Slot« + »Benz LinA« | NH10.0016.1 | max. 4 Wochen / weeks |
| »Marchetti« | NH10.MT16.1 | max. 4 Wochen / weeks | |
| »WTO« | NH10.WT16.1 | max. 4 Wochen / weeks |
Schraube 110.660 = M6x6 screw 110.660 = M6x6
Schlüssel 111.300 key 111.300
