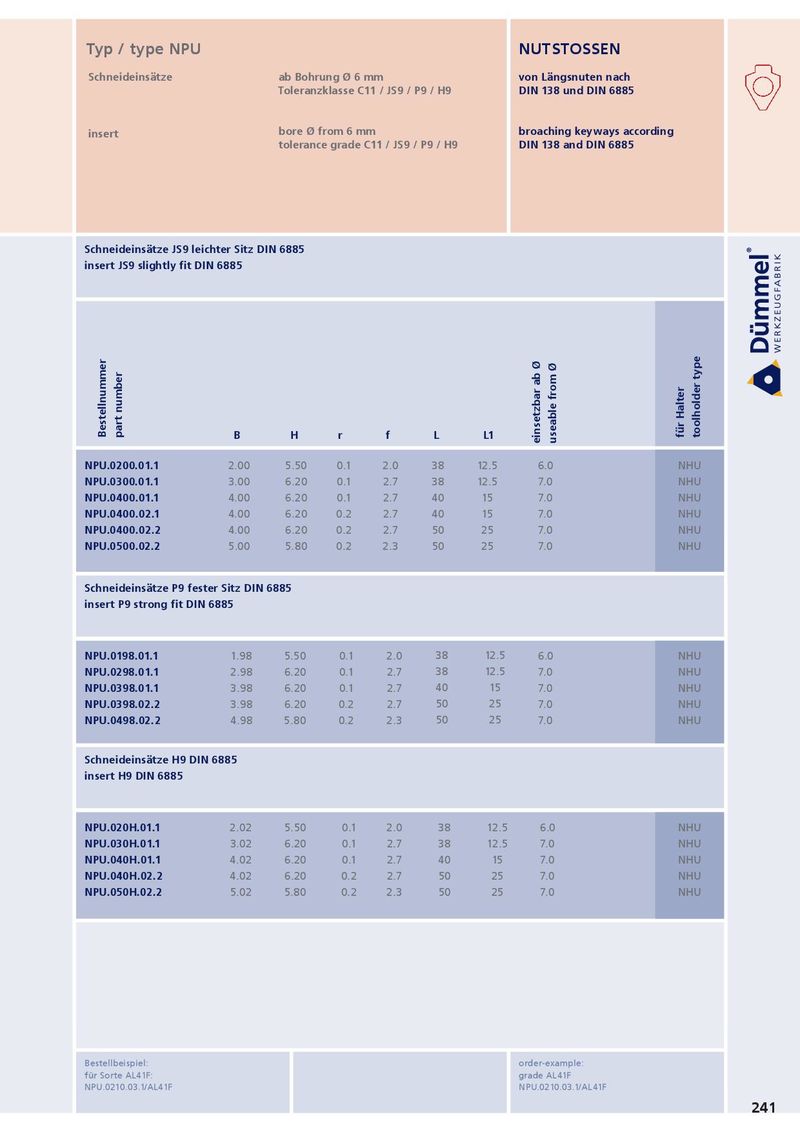

Typ / type NPU NUTSTOSSEN
Toleranzklasse C11 / JS9 / P9 / H9 DIN 138 und DIN 6885
insert bore Ø from 6 mm broaching keyways according
tolerance grade C11 / JS9 / P9 / H9 DIN 138 and DIN 6885
Schneideinsätze JS9 leichter Sitz DIN 6885 insert JS9 slightly fit DIN 6885
| Bestellnummer part number | B | H | r | f | L | L1 | einsetzbar ab Ø useable from Ø | für Halter toolholder type |
| NPU.0200.01.1 | 2.00 | 5.50 | 0.1 | 2.0 | 38 | 12.5 | 6.0 | NHU |
| NPU.0300.01.1 | 3.00 | 6.20 | 0.1 | 2.7 | 38 | 12.5 | 7.0 | NHU |
| NPU.0400.01.1 | 4.00 | 6.20 | 0.1 | 2.7 | 40 | 15 | 7.0 | NHU |
| NPU.0400.02.1 | 4.00 | 6.20 | 0.2 | 2.7 | 40 | 15 | 7.0 | NHU |
| NPU.0400.02.2 | 4.00 | 6.20 | 0.2 | 2.7 | 50 | 25 | 7.0 | NHU |
| NPU.0500.02.2 Schneideinsätze P9 fe insert P9 strong fit DI | 5.00 ster Sitz DIN 6 N 6885 | 5.80 885 | 0.2 | 2.3 | 50 | 25 | 7.0 | NHU |
| NPU.0198.01.1 | 1.98 | 5.50 | 0.1 | 2.0 | 38 | 12.5 | 6.0 | NHU |
| NPU.0298.01.1 | 2.98 | 6.20 | 0.1 | 2.7 | 38 | 12.5 | 7.0 | NHU |
| NPU.0398.01.1 | 3.98 | 6.20 | 0.1 | 2.7 | 40 | 15 | 7.0 | NHU |
| NPU.0398.02.2 | 3.98 | 6.20 | 0.2 | 2.7 | 50 | 25 | 7.0 | NHU |
| NPU.0498.02.2 | 4.98 | 5.80 | 0.2 | 2.3 | 50 | 25 | 7.0 | NHU |
Schneideinsätze H9 DIN 6885 insert H9 DIN 6885
| NPU.020H.01.1 | 2.02 | 5.50 | 0.1 | 2.0 | 38 | 12.5 | 6.0 | NHU |
| NPU.030H.01.1 | 3.02 | 6.20 | 0.1 | 2.7 | 38 | 12.5 | 7.0 | NHU |
| NPU.040H.01.1 | 4.02 | 6.20 | 0.1 | 2.7 | 40 | 15 | 7.0 | NHU |
| NPU.040H.02.2 | 4.02 | 6.20 | 0.2 | 2.7 | 50 | 25 | 7.0 | NHU |
| NPU.050H.02.2 | 5.02 | 5.80 | 0.2 | 2.3 | 50 | 25 | 7.0 | NHU |
NPU.0210.03.1/AL41F NPU.0210.03.1/AL41F
