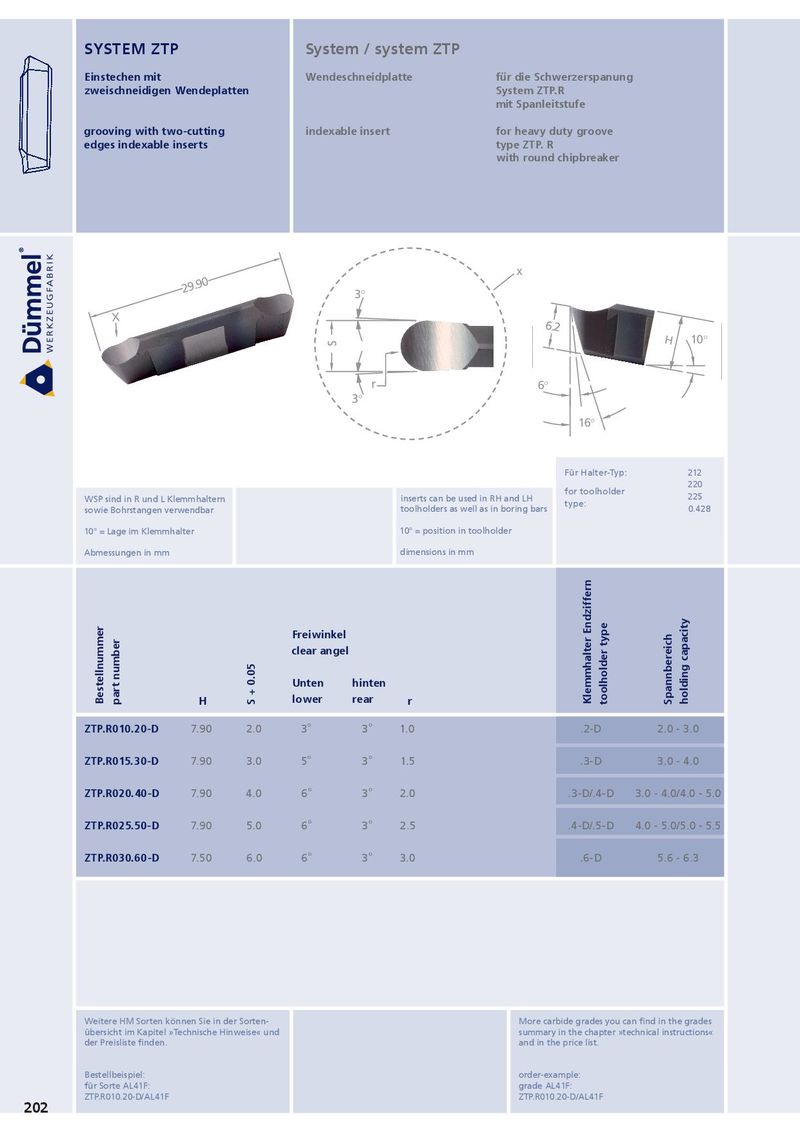

zweischneidigen Wendeplatten System ZTp.R mit Spanleitstufe
grooving with two-cutting indexable insert for heavy duty groove
edges indexable inserts type ZTp. R with round chipbreaker
29.90 3° X
r 3°
x
6.2
6°
H 10°
16°
Für Halter-Typ: 212 220 for toolholder
WSP sind in R und L Klemmhaltern inserts can be used in RH and LH 225
type:
sowie Bohrstangen verwendbar toolholders as well as in boring bars 0.428
10° = Lage im Klemmhalter 10° = position in toolholder Abmessungen in mm dimensions in mm
Freiwinkel clear angel Unten hinten H lower rear r
| ZTp.R010.20-D | 7.90 | 2.0 | 3° | 3° | 1.0 | .2-D | 2.0 - 3.0 | ||
| ZTp.R015.30-D | 7.90 | 3.0 | 5° | 3° | 1.5 | .3-D | 3.0 - 4.0 | ||
| ZTp.R020.40-D | 7.90 | 4.0 | 6° | 3° | 2.0 | .3-D/.4-D | 3.0 - 4.0/4.0 - 5.0 | ||
| ZTp.R025.50-D | 7.90 | 5.0 | 6° | 3° | 2.5 | .4-D/.5-D | 4.0 - 5.0/5.0 - 5.5 | ||
| ZTp.R030.60-D | 7.50 | 6.0 | 6° | 3° | 3.0 | .6-D | 5.6 - 6.3 |
Weitere HM Sorten können Sie in der Sorten- More carbide grades you can find in the grades
202 ZTP.R010.20-D/AL41F ZTP.R010.20-D/AL41F
