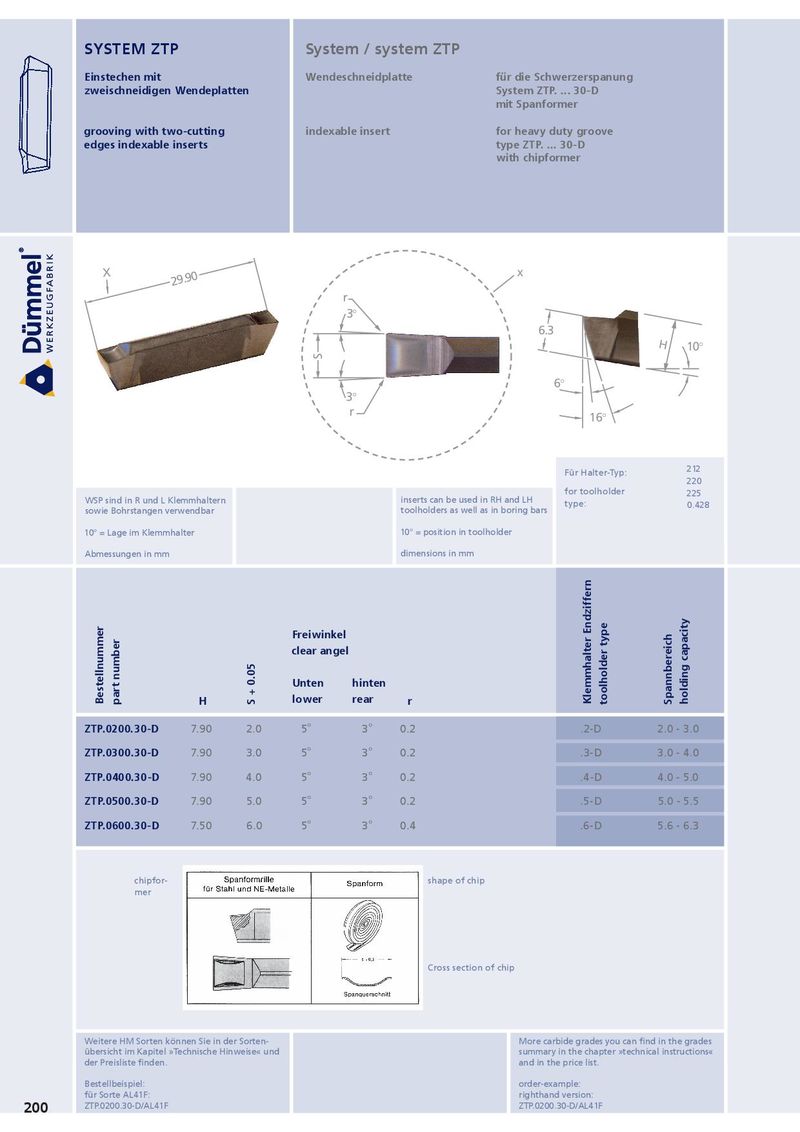

mit Spanformer
grooving with two-cutting indexable insert for heavy duty groove
edges indexable inserts type ZTp. ... 30-D with chipformer
X 29.90 r 3°
3° r
x
6.3
6°
H 10°
16°
WSP sind in R und L Klemmhaltern inserts can be used in RH and LH sowie Bohrstangen verwendbar toolholders as well as in boring bars 10° = Lage im Klemmhalter 10° = position in toolholder Abmessungen in mm dimensions in mm
Für Halter-Typ: 212 220 for toolholder 225 type: 0.428
Freiwinkel clear angel Unten hinten H lower rear r
| ZTp.0200.30-D | 7.90 | 2.0 | 5° | 3° | 0.2 | .2-D | 2.0 - 3.0 |
| ZTp.0300.30-D | 7.90 | 3.0 | 5° | 3° | 0.2 | .3-D | 3.0 - 4.0 |
| ZTp.0400.30-D | 7.90 | 4.0 | 5° | 3° | 0.2 | .4-D | 4.0 - 5.0 |
| ZTp.0500.30-D | 7.90 | 5.0 | 5° | 3° | 0.2 | .5-D | 5.0 - 5.5 |
| ZTp.0600.30-D | 7.50 | 6.0 | 5° | 3° | 0.4 | .6-D | 5.6 - 6.3 |
chipfor- shape of chip mer
Cross section of chip
für Sorte AL41F: righthand version:
200 ZTP.0200.30-D/AL41F ZTP.0200.30-D/AL41F
