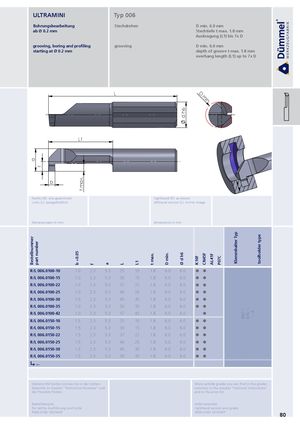

| ULTRAMINI Bohrungsbearbeitung ab Ø 0.2 mm | Typ 0 Stechdre | 06 hen | D min. 6.0 mm Stechtiefe t max. 1.8 mm Auskragung (L1) bis 7x D | ||||
| grooving, boring and profiling starting at Ø 0.2 mm | groovin | g | D min. 6.0 mm depth of groove t max. 1.8 mm overhang length (L1) up to 7x D | ||||
| Rechts (R): wie gezeichnet Links (L): spiegelbildlich L1 b a f t max. | L | righ lefth | thand (R): and versi | as shown on (L): mirr d h6 | or image D min. | ||
| Bestellnummer part number b +0.05 f Abmessungen in mm | a | L | L1 | t max. dim | D min. ensions in | Ø d h6 mm | K10F CN45F AL41F P07C Klemmhalter Typ toolholder type |
| R/L 006.0100-10 1.0 2.3 R/L 006.0100-15 1.0 2.3 | 5.3 5.3 | 25 30 | 10 15 | 1.8 1.8 | 6.0 6.0 | 6.0 6.0 | |
| R/L 006.0100-22 1.0 2.3 | 5.3 | 37 | 22 | 1.8 | 6.0 | 6.0 | |
| R/L 006.0100-25 1.0 2.3 | 5.3 | 40 | 25 | 1.8 | 6.0 | 6.0 | |
| R/L 006.0100-30 1.0 2.3 | 5.3 | 45 | 30 | 1.8 | 6.0 | 6.0 | |
| R/L 006.0100-35 1.0 2.3 | 5.3 | 50 | 35 | 1.8 | 6.0 | 6.0 | ∙∙∙ ∙∙∙ 6 |
| R/L 006.0100-42 1.0 2.3 | 5.3 | 57 | 42 | 1.8 | 6.0 | 6.0 | 660. 676. ∙∙∙. |
| R/L 006.0150-10 1.5 2.3 | 5.3 | 25 | 10 | 1.8 | 6.0 | 6.0 | |
| R/L 006.0150-15 1.5 2.3 | 5.3 | 30 | 15 | 1.8 | 6.0 | 6.0 | |
| R/L 006.0150-22 1.5 2.3 | 5.3 | 37 | 22 | 1.8 | 6.0 | 6.0 | |
| R/L 006.0150-25 1.5 2.3 | 5.3 | 40 | 25 | 1.8 | 6.0 | 6.0 | |
| R/L 006.0150-30 1.5 2.3 R/L 006.0150-35 1.5 2.3 ↳ ... | 5.3 5.3 | 45 50 | 30 35 | 1.8 1.8 | 6.0 6.0 | 6.0 6.0 | |
